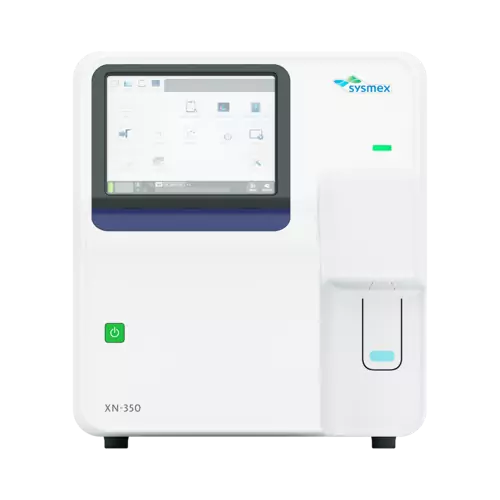

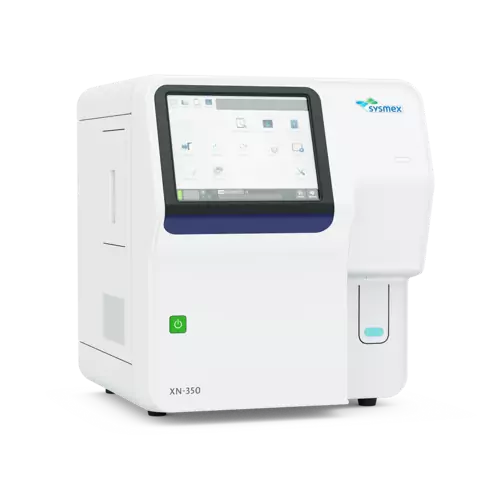

XN-350 Compact 5-part differential analyser
Compact 5-part differential analyser
Single sample analysis in open mode
Fully integrated IPU including LCD colour touchscreen
25 µL aspiration volume in whole blood mode
Scalable system, optional values and services available
The XN-350 offers single sample analysis in open mode. It has a fully integrated IPU (information-processing unit) including an LCD colour touchscreen – so you do not need a separate computer to operate the analyser. It incorporates the proven Sysmex technologies of fluorescence flow cytometry, hydrodynamic focussing and our cyanide-free SLS method for determining haemoglobin. Ready for the future, it can be upgraded by adding new clinical and productivity values, or by opting for further professional services and connecting to our Extended IPU as your demands change.
*Technical Specifications :
-Dimensions / weights W x H x D [mm / kg] : XN-350: 450 x 510 x 460 / approx. 35 kg
-Throughput : up to 60 samples/h in WB mode / up to 70 samples/h in WB mode with the optional Speed-up licence
-Aspiration volume : 25 µL in WB mode, / 70 µL in PD and BF mode
-Analysis parameters : Whole Blood
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, PDW, MPV, P-LCR, PCT, NEUT#, LYMPH#, MONO#, EO#, BASO#, NEUT%, LYMPH%, MONO%, EO%, BASO%, IG#, IG%
/With RET (optional)
RET#, RET%, IRF, LFR, MFR, HFR, RET-He, PLT-O
/Body Fluids with XN-BF (optional)
WBC-BF, RBC-BF, MN#, PMN#, MN%, PMN%, TC-BF#
-Measurement principles : WBC DIFF/RET: Fluorescence Flow Cytometry / WBC: Flow Cytometry / RBC/PLT: DC Impedance method with hydrodynamic
focussing /HGB:Cyanide-free SLS method
-Data storage capacities : Results: 100,000 samples / Patient information: 10,000 records / Calibration history: 20 times/ module / QC files: 99 files including XbarM
-User maintenance : Daily shutdown / Weekly cleaning sequence with Cellclean or Cellclean Auto
