- Multifunctional
- 6MWT, Sleep Test, 24-hour Holter for SpO2%
- Touchscreen

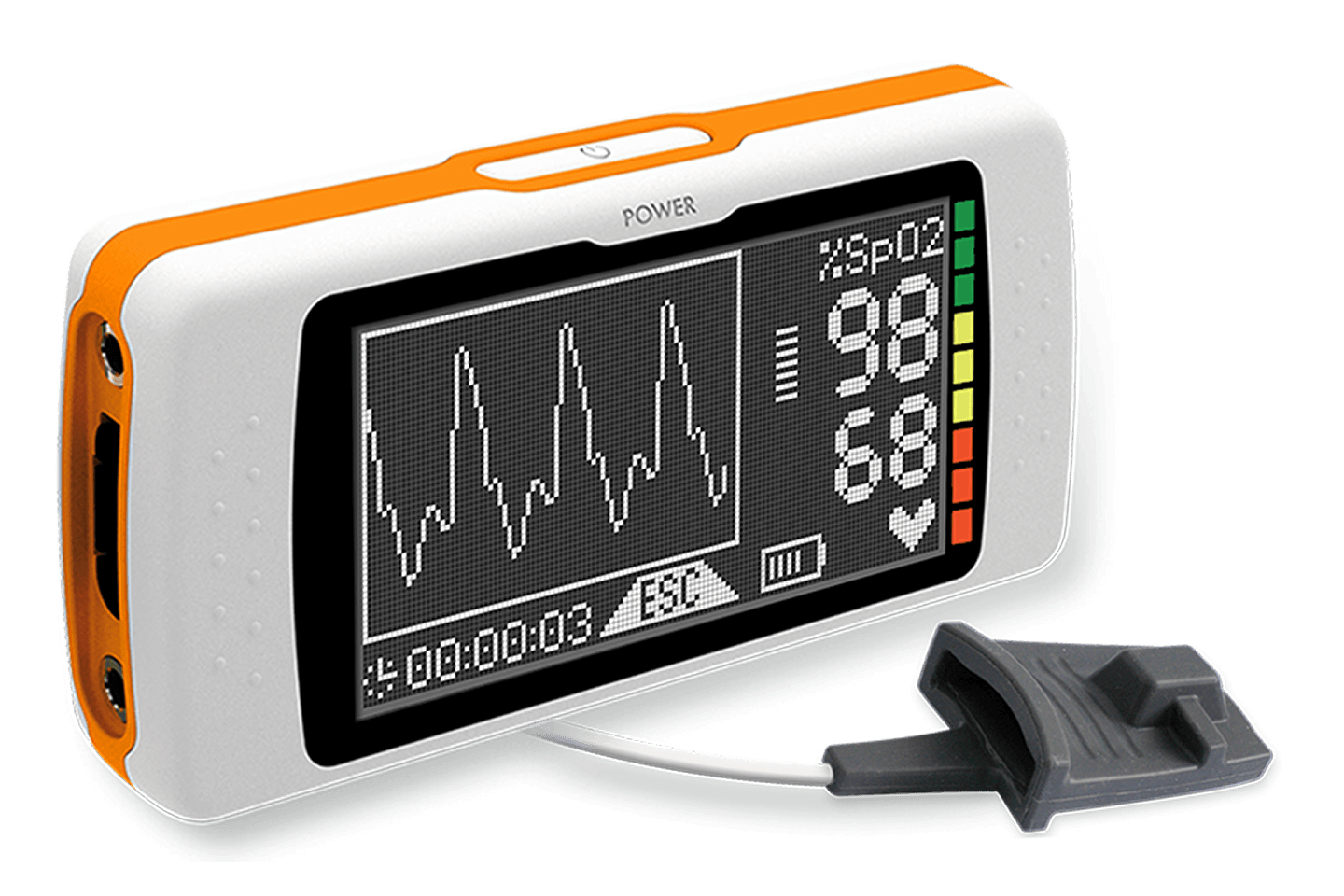

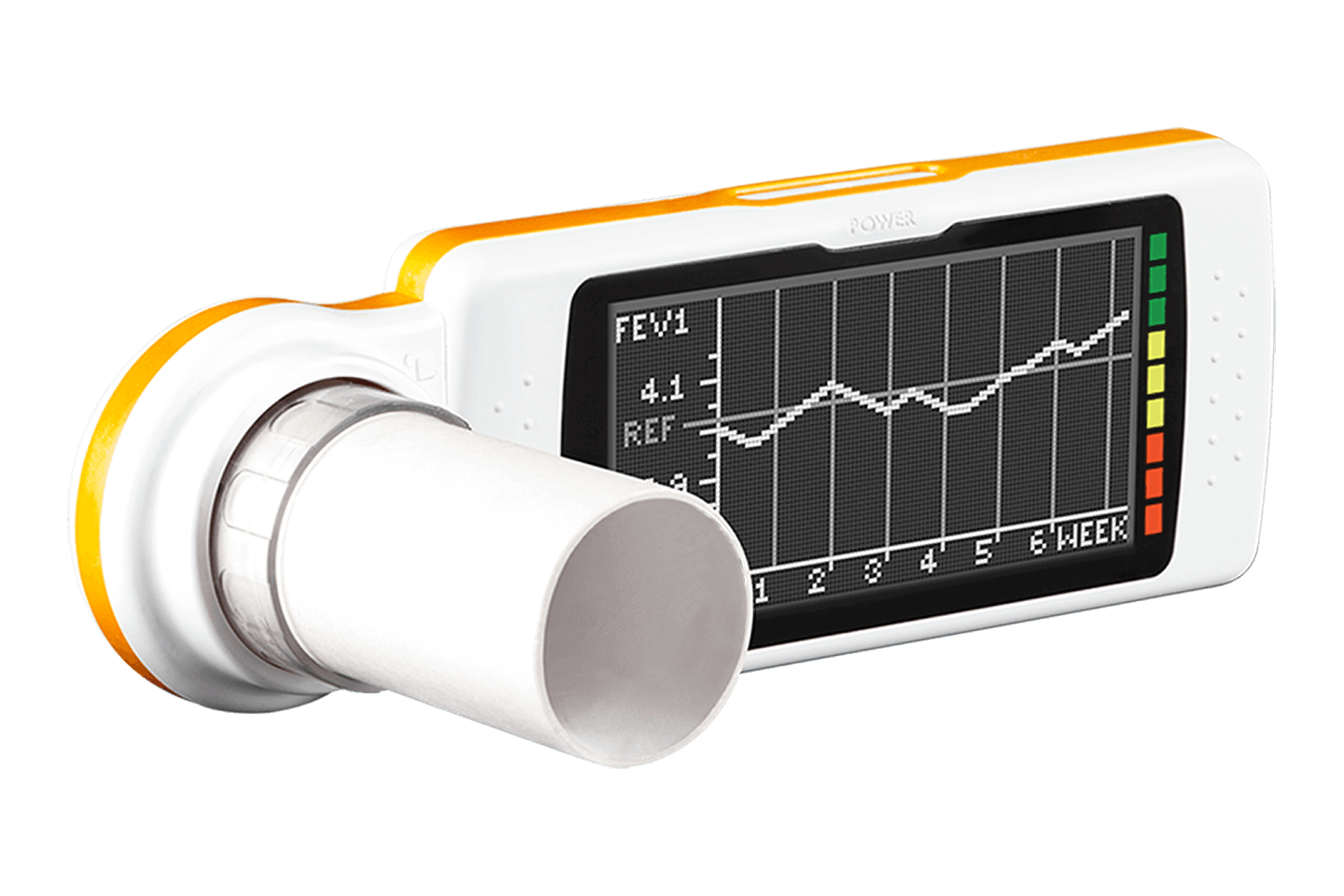

- Spirodoc is a multifunctional portable touchscreen spirometer with optional 3D oximetry. In addition to spirometric tests and spot oximetric tests, Spirodoc also allows for the performance of 6-minute walking tests (6MWT), sleep tests, and 24-hour Holter tests with the 3D oximetry option.
- To further facilitate oximetric testing, Spirodoc is designed with a removable optoelectronic reader for spirometry. With the triaxial accelerometer, it is possible to record patient movement and position during the measurement.
- The device enables real-time display of spirometric tests, both directly from the display and on the PC screen through the dedicated MIR Spiro Software. It operates in both Stand Alone mode and when connected to the PC via USB cable.
All the features :
- 6-Minute Walking Test (6MWT) :
Available with oximetry option to measure the response of a cardiopulmonary system involved in exercise
- Sleep Test :

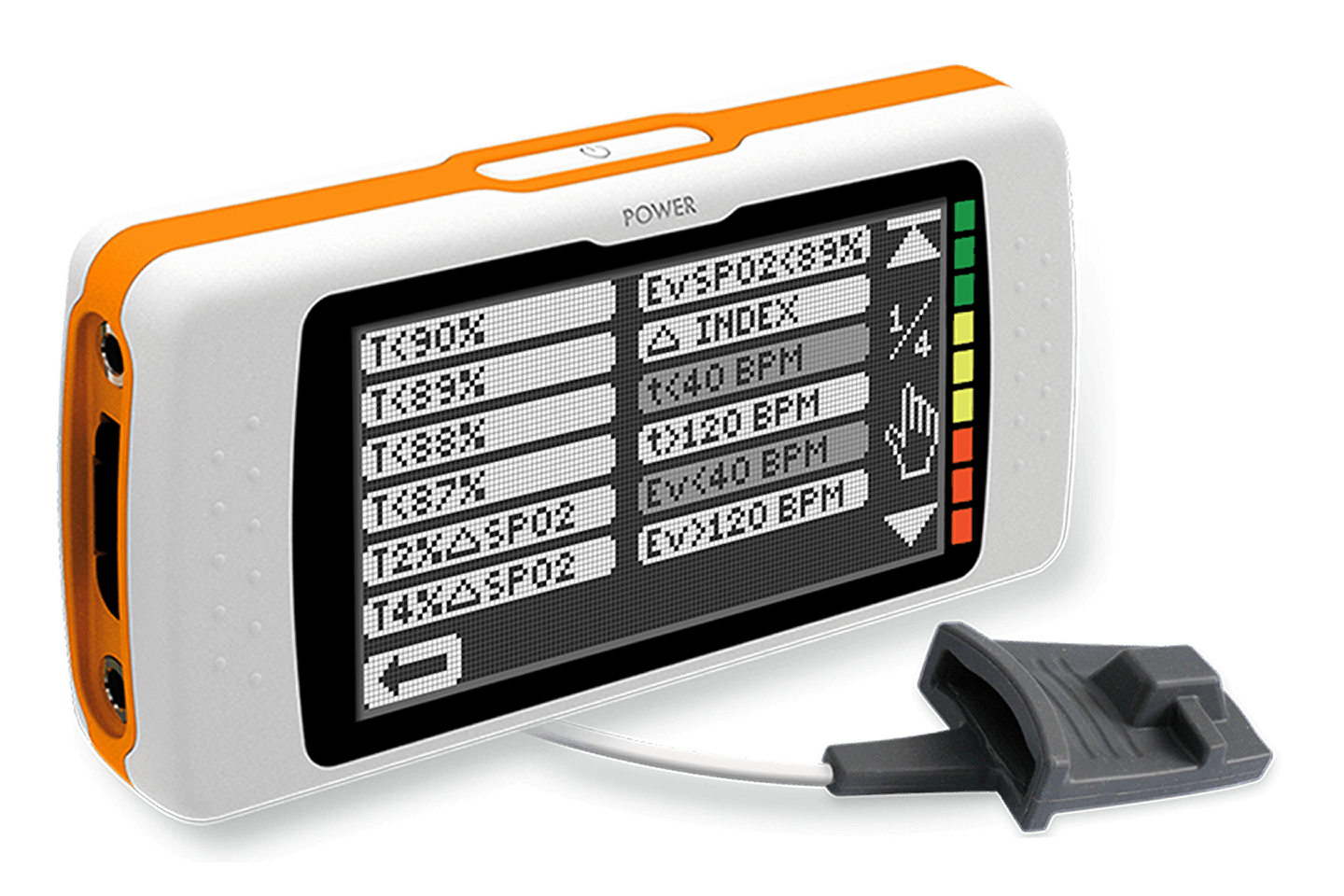

Available with oximetry option to measure sleep desaturation and record events and body position
- 24-hour Holter Test :
Available with oximetry option to measure desaturation events during daily activities and determine the amount of oxygen needed by the patient in those circumstances
- Real-time testing :
Real-time test displayed both on the device screen and on the PC via MIR Spiro Software Spirometry: FVC, VC, MVV, PRE/POST bronchodilator comparison Ossimetria (opzionale): Spot test (SpO2%, BPM), 6MWT, Sleep Test, Holter 24 h for SpO2%.
- Triaxial Accelerometer (with 3D oximeter) :
Triaxial accelerometer for recording patient movement and position during measurement
- Predicted values :
Wide selection of predicted values including GLI, and ERS, among others, directly on the device and in PC mode
- EMR/EHR connectivity :
Integration via MIR Spiro Software with EMR/EHR (in HL7, GDT, FHIR, EXCHANGE PROTOCOL)
- Pediatric incentive :
Real-time animation available on MIR Spiro Software to improve patient compliance during the test
- Integrated temperature sensor :
Automatic BTPS conversion
- Traffic light system :
Integrated traffic light system
- Removable Optoelectronic Spirometry Reader :
Removable to facilitate the oximetry test
Technology :
1- FlowMIR®, Disposable Turbine :
Disposable, factory-calibrated turbine flowmeter, individually packaged with cardboard mouthpiece.
2- Reusable Turbine Flowmeter :
Reusable turbine flowmeter with metal mesh, individually packaged without mouthpiece. To be used with either plastic or paper mouthpieces.
Compatible accessories :
1- Bacterial-Viral Filter
2- Calibration syringe 3L
3- Carrying case
4- Finger Probe Extension Cable
5- FlowMIR®, Disposable Turbine
6- Oximetry finger sensor
7- Oximetry probe SoftTip® Large
8- Oximetry probe SoftTip® Medium
9- Oximetry probe SoftTip® Small
10- Paper adult disposable mouthpiece
11- Plastic noseclip
12- Plastic pediatric reusable mouthpiece
13- Reusable Turbine Flowmeter

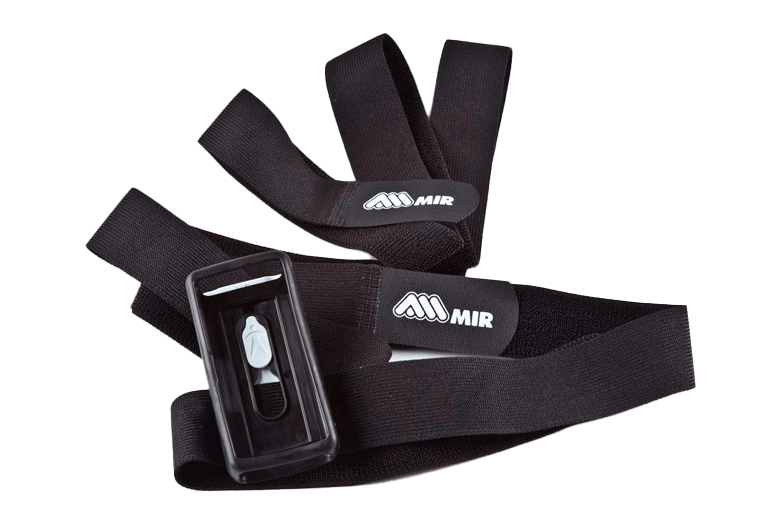

14- Spirodoc case and belt
15- USB cable
