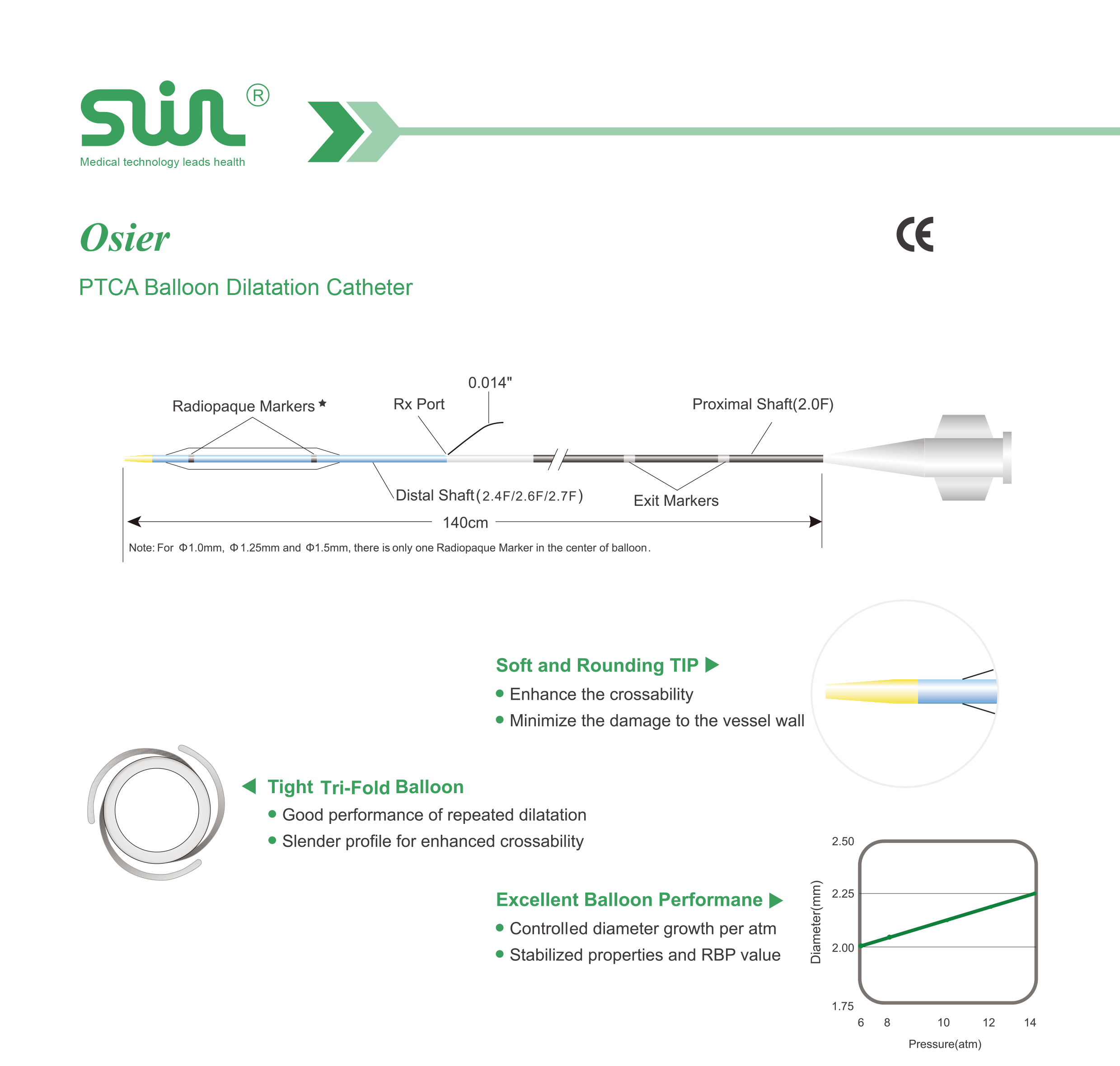

PTCA Balloon Dilatation Catheter

CE MARKING

ISO 13485

◆ Technical Specification :-

Catheter Design:Rapid Exchange

Balloon Material:Pebax

Balloon Compliance:Semi-Compliant

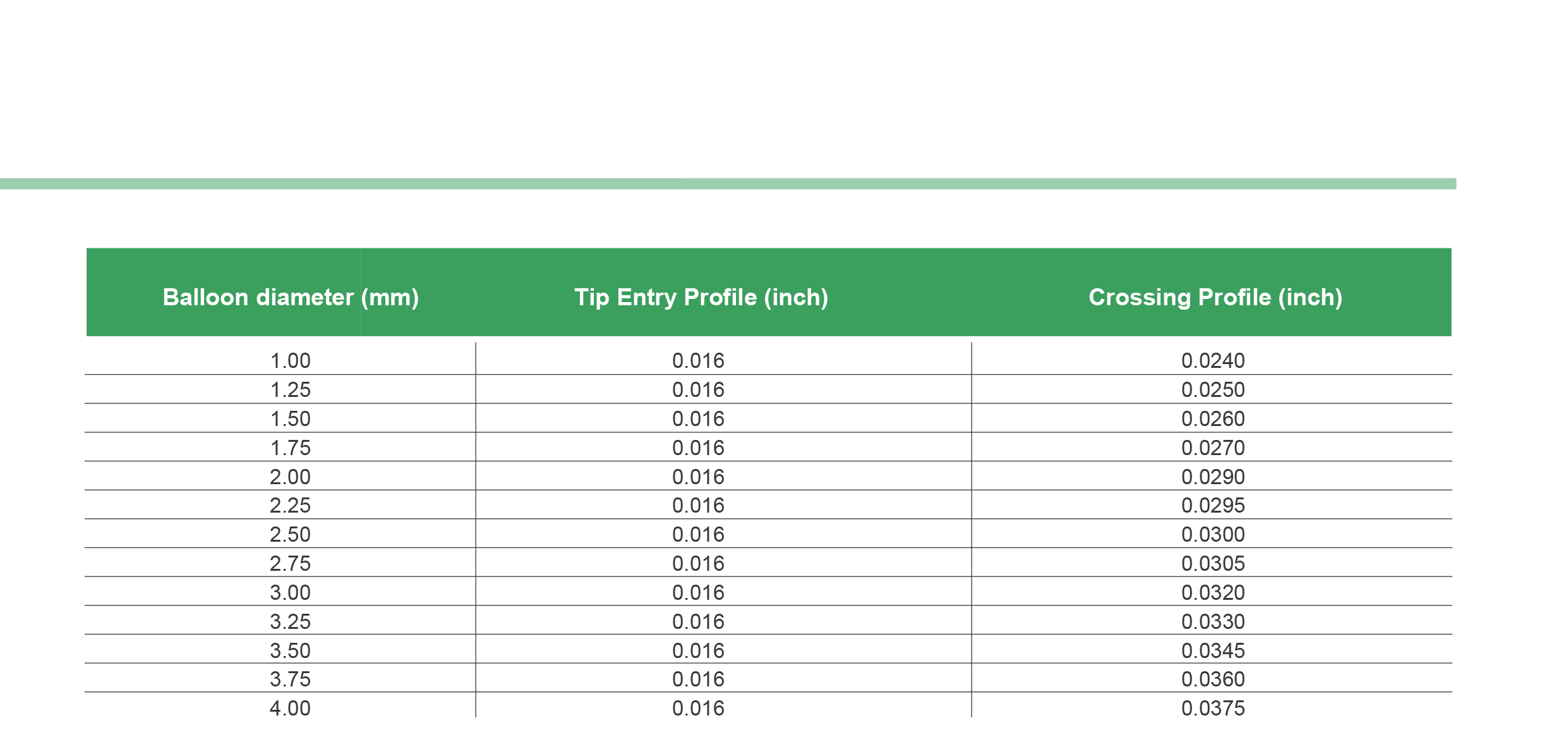

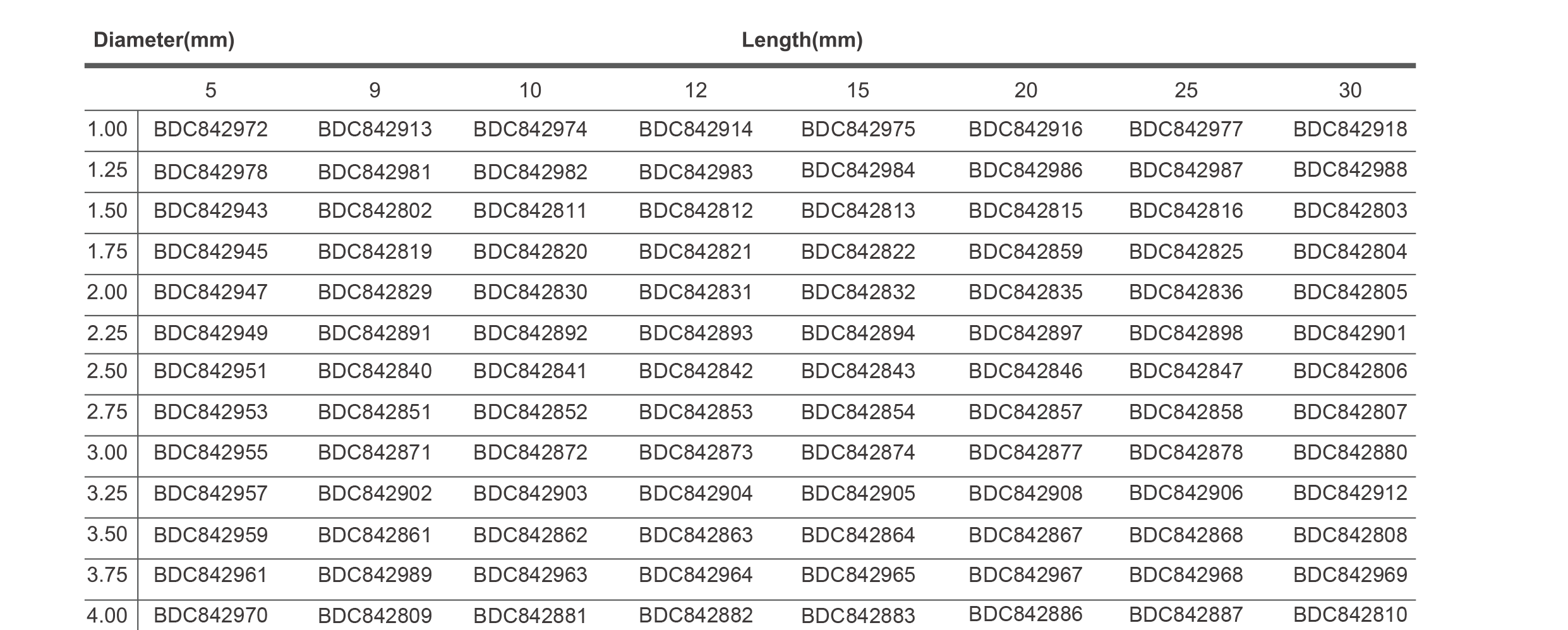

Balloon Diameter (mm):1.00, 1.25, 1.50, 1.75, 2.00, 2.25, 2.50, 2.75, 3.00, 3.25, 3.50, 3.75, 4.00

Balloon Length (mm):5mm, 9mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm

Proximal Shaft:2.0F

Distal Shaft:2.4F(1.0mm-2.0mm) / 2.6F(2.25mm-43.25mm) / 2.7F(3.5mm-44.0mm)

Effective Length:140cm

Marker:1(φ1.00mm-1.5mm) / 2(1.75mm-42.00mm-44.00mm)

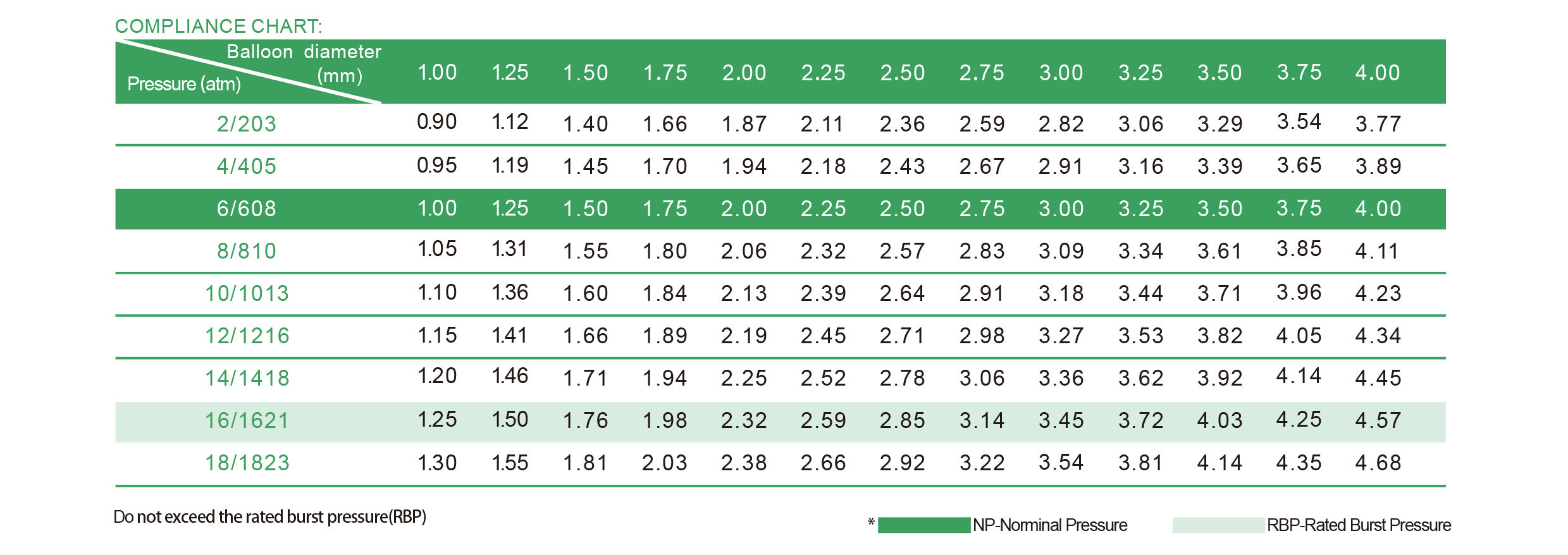

Nominal Pressure:6 atm

Rated Burst Pressure:16 atm

Guide Wire Compatibility:0.014 in

Minimum Guiding Catheter Compatibility:5F
