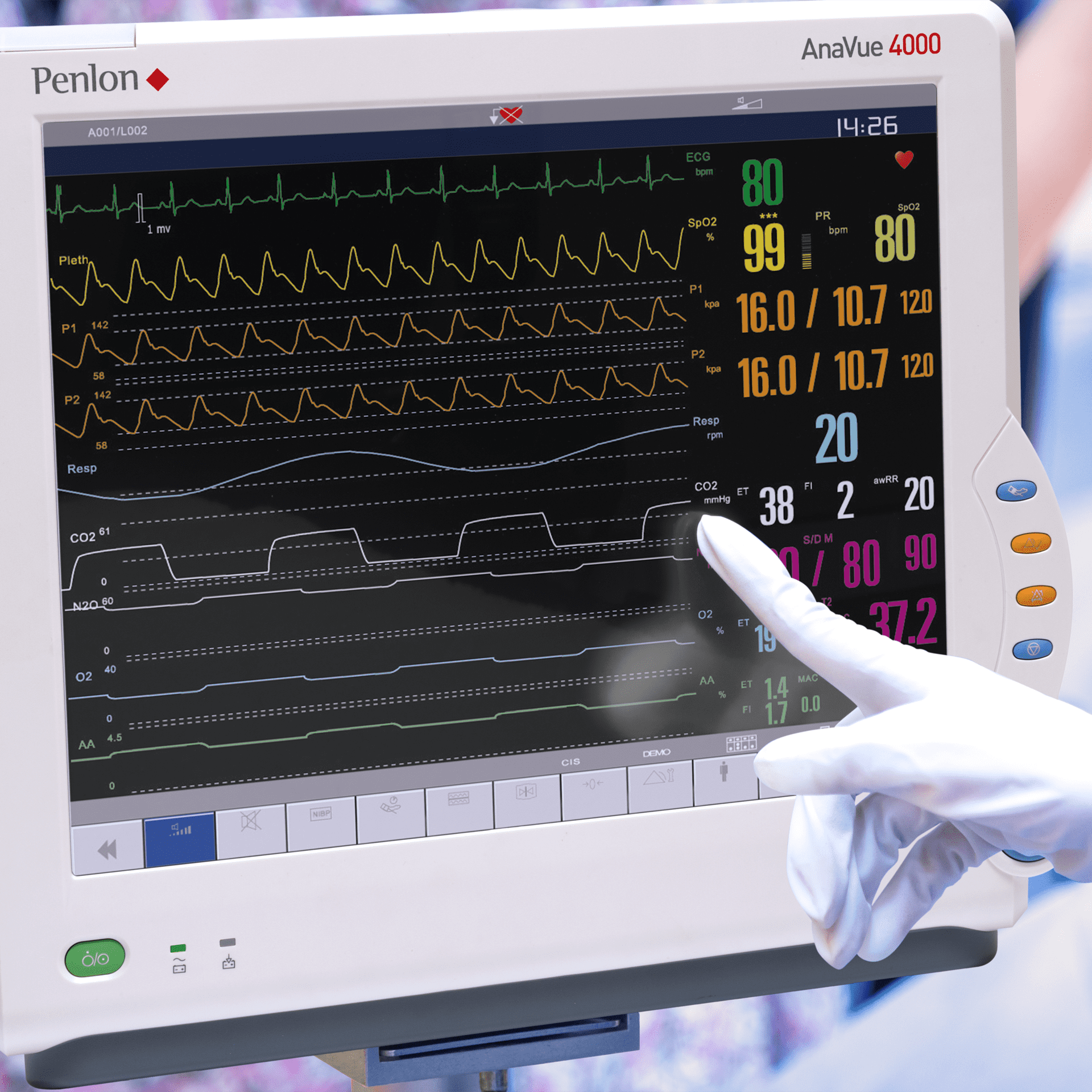

The Penlon AnaVue 4000 Patient Monitor is a sophisticated system that delivers continuous monitoring and data upload during patient transfers.
- Modular patient monitor for anaesthesia and critical care
- User-defined multi-parameter display
- Seamless monitoring with the EMS plug-in module

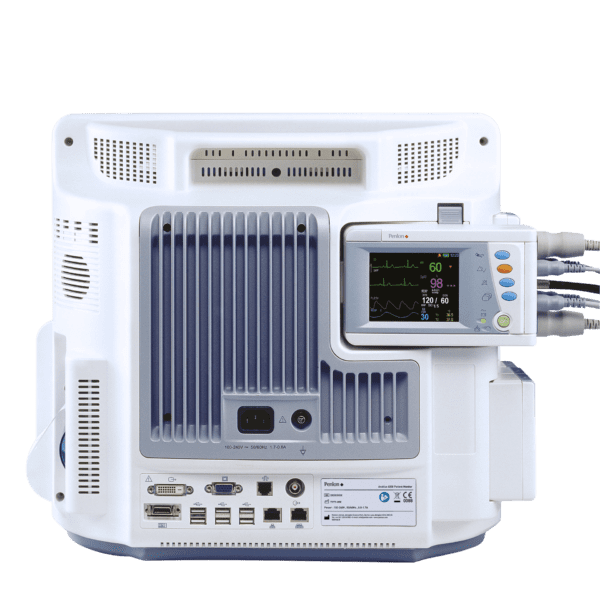

- EMS module provides full transport functionality as a secondary display, remote from main monitor
- Programmable touchscreen configuration
- FDA and CE certified
* Features :-
- 17" TFT LCD touchscreen colour display and slave screen capability
- EMS Multi-parameter module/transport monitor
- 8-hour trend data storage on EMS
- Networkable as standard, with wireless LAN option
- Unique display management function uses scalable screen elements to customize the display
- User-definable smart-key controls
- Quiet, fan-less cooling system
- Rechargeable lithium battery
- 2 GB SD memory card for enhanced data storage handling (upgradeable to 4 GB)
* EMS Module :-
Multi-parameter, dual-function EMS - plug-in module/transport monitor with 3.5" touchscreen.
- Temperature, Respiration and NIBP as standard
- 2-IBP
- 3/5 or 12 ECG
- Standard SpO₂
* Parameters :-
- ECG
- RESP
- NIBP
- Nellcor® SpO₂
- Masimo® SpO₂
- TEMP
- IBP
- CO₂
- Anaesthetic Gas/O₂
- CO
- Impedance Cardiograph
- EEG
- BIS
