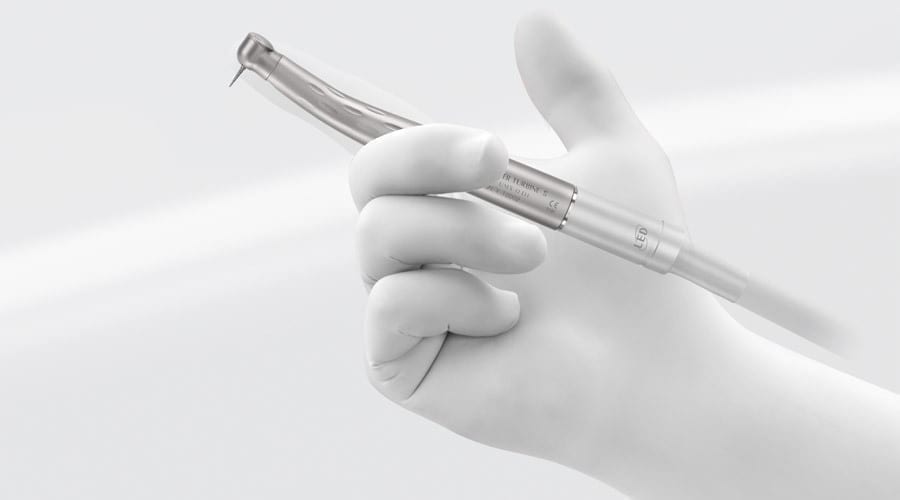

TwinPower Turbine
Small. High-powered. Unique.
Our TwinPower turbines ergonomically combine form and function. The hallmarks of the TwinPower Turbine is its innovative and unique double impeller which provides high-power in a small package. All TwinPower turbines come standard with Zero-Drawback technology which prevents aerosol intake and sets a new standard in infection control. Combined with ergonomic, light weight designs, our TwinPower turbines allow for silky smooth and rapid procedures, for you and your patients.
*Unique double-impeller technology
*Quick stop system
*Zero-Drawback effect

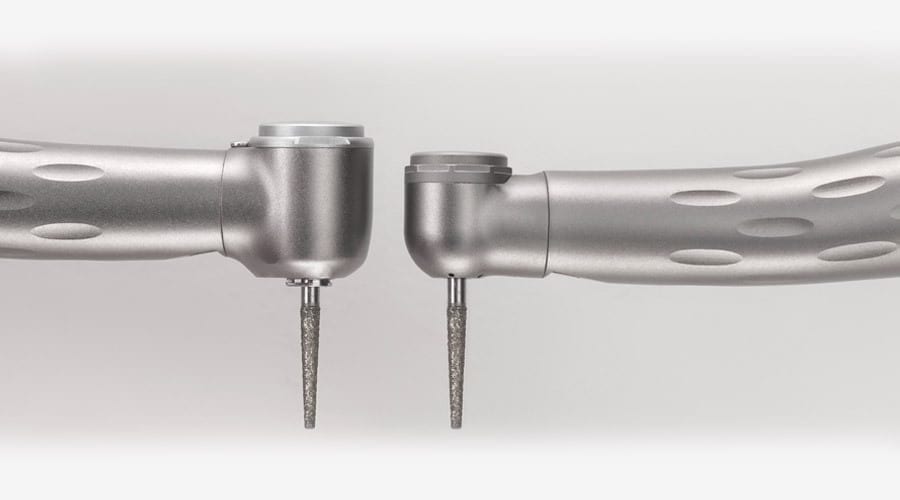

*Compact turbine heads
*Compatible coupling system
"Specifications"

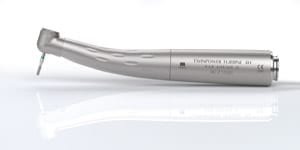

"TwinPower PAR-4HX-O"
-Power* (watts):
25 W
-Speed at 0.2 Mpa:
350,000 rpm
+ - 30,000 rpm
-Head diameter:
12 mm
-Head height:
13.2 mm
-Weight:
48 - 57 g
-Spray nozzles:
3
-Rotor blades:
40
-Light:
✔
-Air curtain:
3 openings
-Operating pressure:
0.20 - 0.29 Mpa
-Zero suck-back:
✔
-Quick stop:
✔

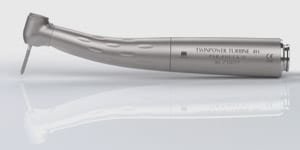

"TwinPower PAR-4HEX-O"
-Power* (watts):
22 W
-Speed at 0.2 Mpa:
370,000 rpm
+ - 30,000 rpm
-Head diameter:
10.5 mm
-Head height:
13.2 mm
-Weight:
48 - 57 g
-Spray nozzles:
3
-Rotor blades:
36
-Light:
✔
-Air curtain:
5 openings
-Operating pressure:
0.20 - 0.29 Mpa
-Zero suck-back:
✔
-Quick stop:
✔

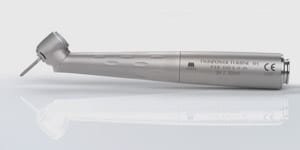

"TwinPower PAR-4HEX-O-45"
-Power* (watts):
20 W
-Speed at 0.2 Mpa:
370,000 rpm
+ - 30,000 rpm
-Head diameter:
10.5 mm
-Head height:
13.2 mm
-Weight:
53 - 59 g
-Spray nozzles:
3
-Rotor blades:
36
-Light:
✔
-Air curtain:
5 openings
-Operating pressure:
0.20 - 0.29 Mpa
-Zero suck-back:
✔
-Quick stop:
✔

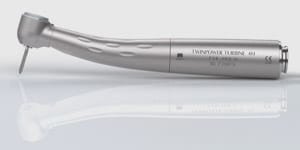

"TwinPower Ultra E PAR-4HUEX-O"
-Power* (watts):
20 W
-Speed at 0.2 Mpa:
370,000 rpm
+ - 30,000 rpm
-Head diameter:
9 mm
-Head height:
12.7 mm
-Weight:
48 - 57 g
-Spray nozzles:
3
-Rotor blades:
36
-Light:
✔
-Air curtain:
5 openings
-Operating pressure:
0.20 - 0.29 Mpa
-Zero suck-back:
✔
-Quick stop:
✔

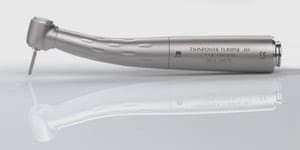

"TwinPower Ultra M PAR-4HUMX-O"
-Power* (watts):
18 W
-Speed at 0.2 Mpa:
370,000 rpm
+ - 30,000 rpm
-Head diameter:
9 mm
-Head height:
10.6 mm
-Weight:
48 - 57 g
-Spray nozzles:
1
-Rotor blades:
40
-Light:
✔
-Air curtain:
3 openings
-Operating pressure:
0.20 - 0.29 Mpa
-Zero suck-back:
✔
-Quick stop:
✔
**Output power measured according to the procedure in ISO 14457:2017
**Weight varies depending on connection type
"Compatibility"

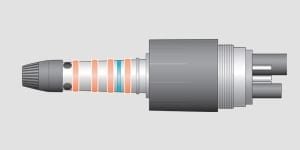

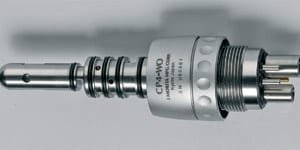

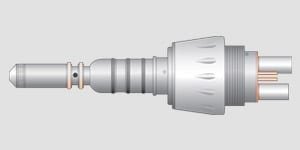

Our TwinPower turbines are compatible with the following coupling systems:
(Product name& Type designation)

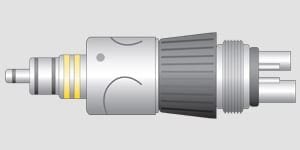

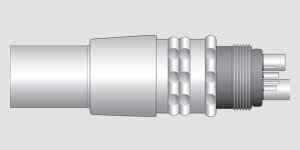

"Coupling systems"
-TwinPower PAR-4HX-O:
Morita
KaVo
Sirona
W&H
NSK
-TwinPower PAR-4HEX-O:
Morita
KaVo
Sirona
W&H
NSK
-TwinPower PAR-4HEX-O-45:
Morita
KaVo
-TwinPower Ultra E PAR-4HUEX-O:
Morita
KaVo
Sirona
W&H
NSK
-TwinPower Ultra M PAR-4HUMX-O:
Morita
KaVo
Sirona
W&H
NSK
