Finus 50
Ultrasound Diagnostic System
Reliable and Intelligent
Advanced Applications
Panoramic
The extended field of view displays more image information without sacrificing image quality. A convenient approach for big-size organs, especially for MSK structures. It has scanning direction and speed indications.
Elastography
Real time elastography is a new noninvasive and painless technique that can help determine the hardness of organs and other structures such as breast, thyroid. Elastic imaging provides users with dynamic visual information and displays the rigidity of organs, which is helpful for direct and quantitative diagnosis and treatment.

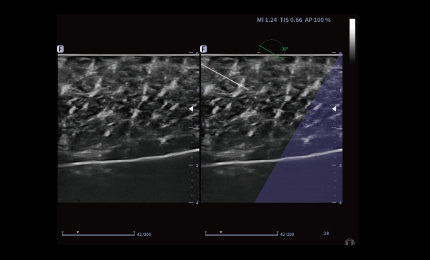

eBiopsy+
The image of the puncture needle is enhanced by the deflection of the acoustic beam, including needle enhancement, needle tip red rendering, virtual needle passage and scale line, supporting auto steering.

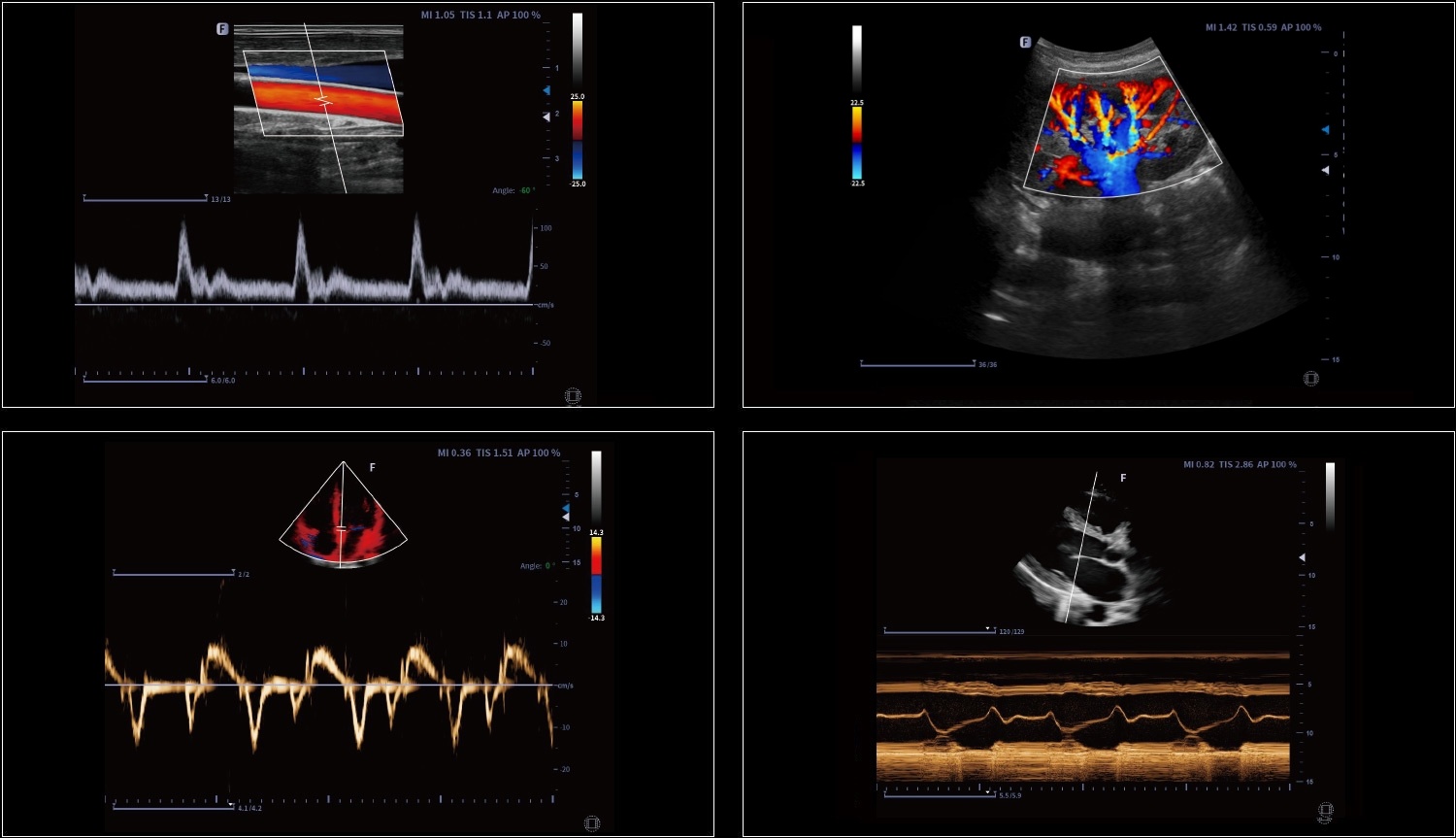

Tissue Doppler Imaging
Tissue Doppler Imaging (TDI) is a robust and reproducible echocardiographic tool that employs the Doppler effect to assess muscle wall characteristics throughout the cardiac cycle including velocity, displacement, deformation, and event timings. It has permitted a quantitative assessment of both global and regional function and timing of myocardial events.
Curved AM
Curved Anatomical M-Mode (CAM) technology can show all the spatial and temporal relationship of myocardial segment movements during the cardiac cycle in the scanning sector, which provides a new measurement method to quantitatively analyze the abnormalities of segmental myocardial motion during systolic or diastolic period.
Smart Workflow

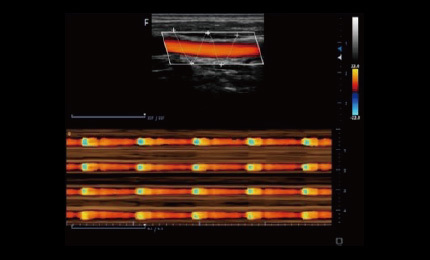

Auto Volume Flow
Providing tutorial information regarding abdomen, vascular, small parts, GYN, MSK, etc., including standard ultrasound image, anatomical diagram, scanning technique and tips.
Auto IMT
Automatic identification and measurement of intima-media thickness. Both left and right blood vessels, anterior and posterior walls can be measured.
fAssist
Providing tutorial information regarding abdomen, vascular, small parts, GYN, MSK, etc., including standard ultrasound image, anatomical diagram, scanning technique and tips.
-User-friendly Design

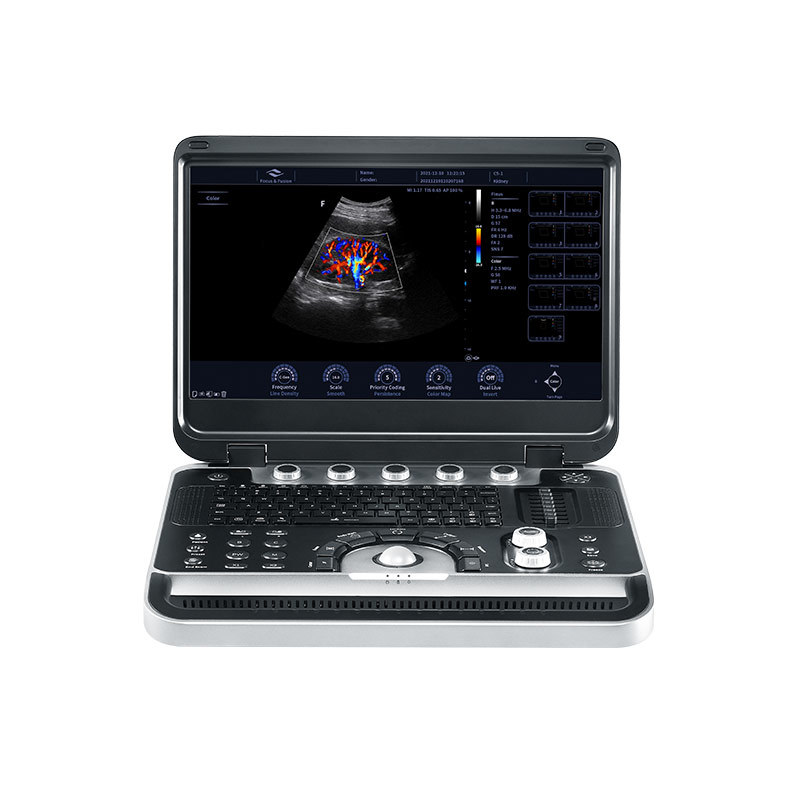

-High-definition Monitor
15.6-inches LCD monitor for better visualization
-Magnalium Alloy Shell
Equipped with magnalium alloy shell for better protection.

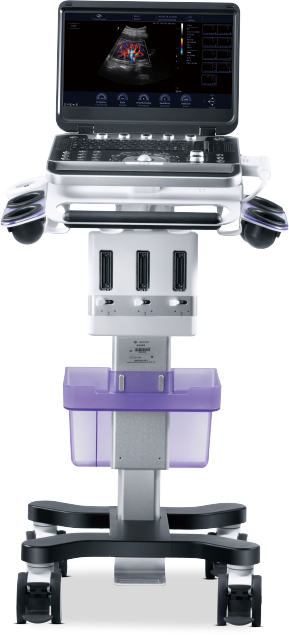

-Probe Extender
Support 3 active probes on the trolley
-Built-in Battery
Continuous scanning for a long time without power
-Storage Shelves
Large storage shelves for users

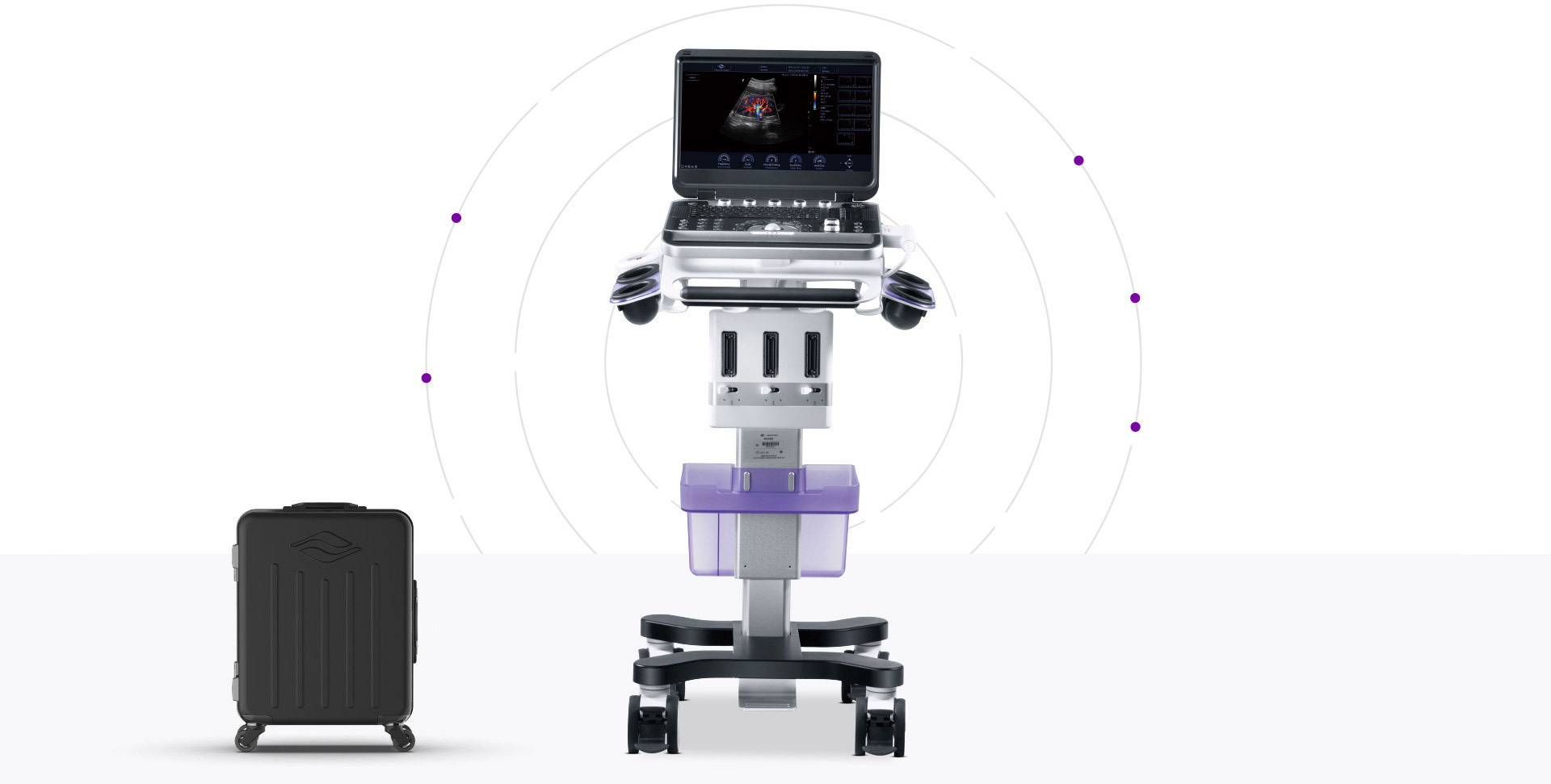

-Specialized Protective Suitcase
* Transducers ( Probes ) :-
1) Convex C5-1
Applications:Abdomen,
Obstetrics, Gynecology
2) Micro-convex MC10-3
Applications:Pediatrics,
Cardiology
3) Intracavitary EC9-4
Applications:Obstetrics,
Gynecology, Urology
4) Linear L12-4
Applications:Small parts,
Vascular, MSK
5) Linear L17-5
Applications:Small parts,
Vascular, MSK
6) HD Linear L13-3
Applications:Small parts,
Vascular, MSK, Breast
7) Phased Array P5-2
Applications:Cardiology,
Abdomen, TCD
8) Phased Array P8-2
Applications:Abdomen,
Pediatric cardiology
