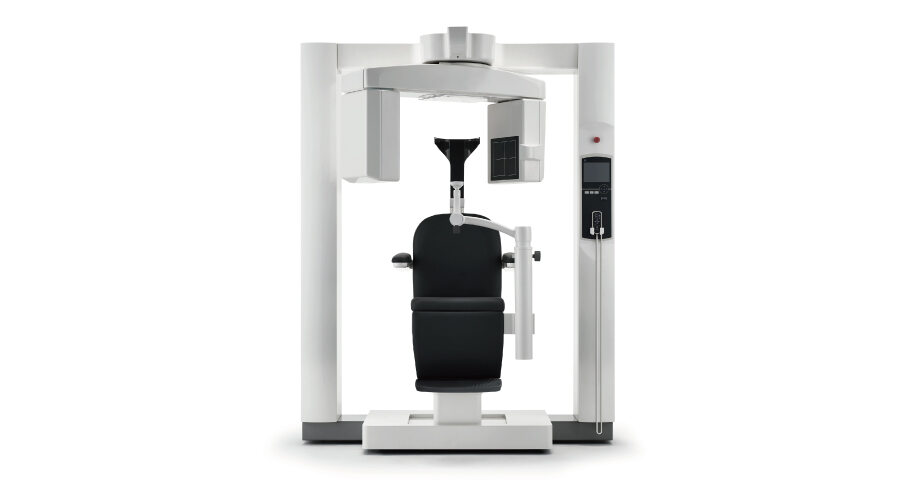

The 3D Accuitomo 170 offers unsurpassed image clarity. With 9 fields of view and multiple acquisition modes, the 3D
Accuitomo 170 can meet all of your diagnostic needs with unparalleled quality. Its super-fine minimal voxel size of just 80
µm allows diagnosing even the most subtle details of bone and dentition. The 3D Accuitomo 170 is highly recommended by leading radiologists for periodontology, oral surgery, endodontics, orthodontics, dental implants, for the maxillofacial region and beyond.
*High-quality images with low dose
*Nine fields of view
*Four imaging modes
*Simple, accurate positioning
*Sharing image data
*Numerous clinical cases
- Name:
3D Accuitomo
-Model:
MCT-1
-Type:
EX 1/2 F17
-Input Voltage:
100/110/120 VAC
220/230/240 VAC
-Power Consumption:
max. 2.0 kVA
"X-ray Head"
-Tube Voltage :
60-90 KV
-Tube Current:
1 - 10mA (max 8 mA:Hi-Fi, Hi-Res Modes)
-Focal Spot Size:
0.5 mm
-Exposure Time (360°/180°):
Std-Modus:17.5/9.0 sec.
Hi-Fi-Modus:30.8/15.8 sec.
Hi-Res-Modus:30.8/15.8 sec.
Hi-Speed-Modus:10.5/5.4 sec.
-Field of View
(Diameter × Height):
Ø 170 x120 mm Ø 170 x 50 mm
Ø 140 x100 mm Ø 140 x 50 mm
Ø 100 x100 mm Ø 100 x 50 mm
Ø 80 x 80 mm
Ø 60 x 60 mm
Ø 40 x 40 mm
-Voxel Size:
80 µm, 125 µm, 160 µm, 200 µm, 250 µm
Hardware Minimum Requirements for Client PC (3D X-Ray)
PC with Windows operating system
Windows XP and Windows 7 Professional
CPU:Intel Pentium IV 3 GHz or more
Main memory:RAM 2 GB or more
Hard drive:20 GB or more recommended
Network:100BASE-TX x2 or NIC of equivalent capacity
Note on back-up of data
The person bearing responsibility for the data back-up prescribed by law shall be the operator of the unit in question. The data- base must be backed up each working day by saving to some external storage medium.
