◆ Technical Data :-
- Power Voltage : Customer specified
- Frequency : 50/60Hz
- Consumption : 600VA
- Temperature control : Servo-control / Manual control
- Dimensions Main body: W1070 x D680 x H1380-1780mm (excluding the display)
- Mattress surface : H800-120mm & H815-1215mm (with the weight monitor)
- External display : W245 x D65 x H160mm
- Mattress : W650 x D365 x T20mm
- Weight : Approx. 100kg Approx. 104kg (if the unit includes the weight monitor)

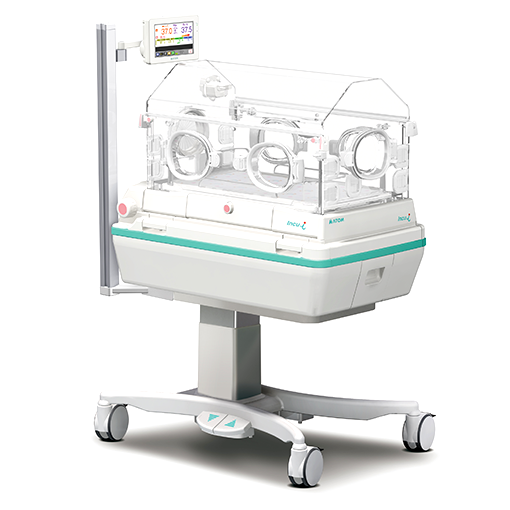

A standard incubator model that supports daily nursing care
- Air curtain of access port
Air curtain to minimize a drop in the incubator air tempereture. The air curtain prevents ambient air from entering the incubator as much as possible, even when the snap-open access ports are opened.

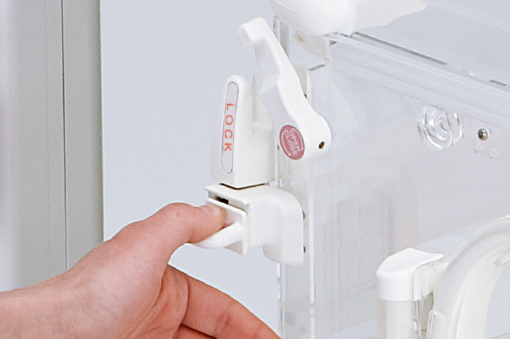

- Double lock system
The double lock system prevents opening admittance panels even if users forget to lock these panels.

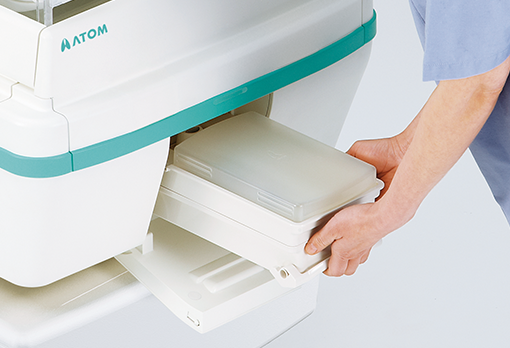

- X-Ray cassette tray port
The X-Ray cassette can be drawn out from either side of the incubator without opening the admittance panel.
- Mattress platform tilting function
The mattress platform can be tilted without opening the admittance panel.

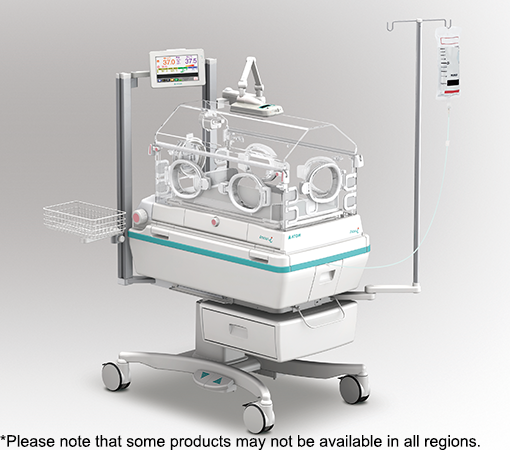

- Make the utmost use of workspace around the inucubator
Peripheral equipment can be easily mounted to F-rail pole.
- Sanitary structure for thorough cleaning of the unit
The component parts of the incubator can be detached and cleaned.

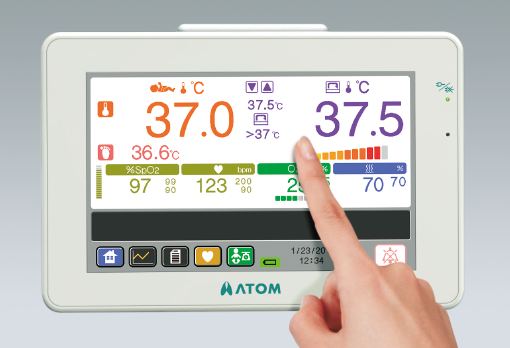

- Touch control panel
Color display offers intuitive operation and easy identification of each parameter.

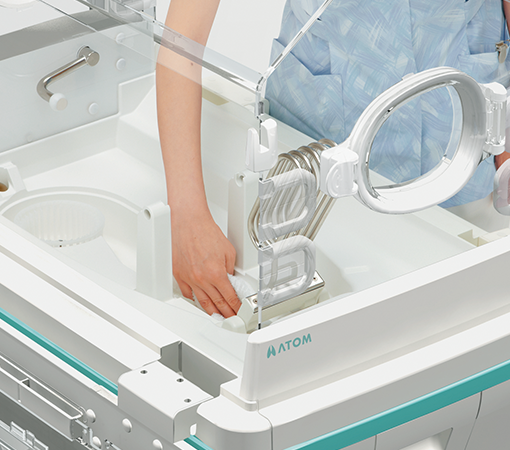

- Easily detachable humidity chamber
The humidity chamber can be detached and cleaned easily.

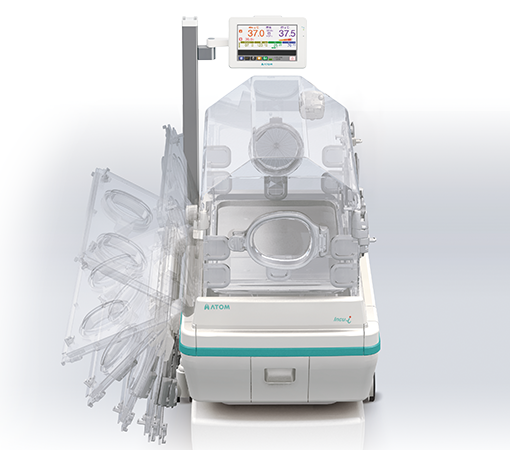

- Rotary damper
Rotary damper controls quiet operation of the admittance panels so that these can be dropped down slowly and silently.
- Snap-open access ports
Snap-open access ports can be opened and closed silently.
