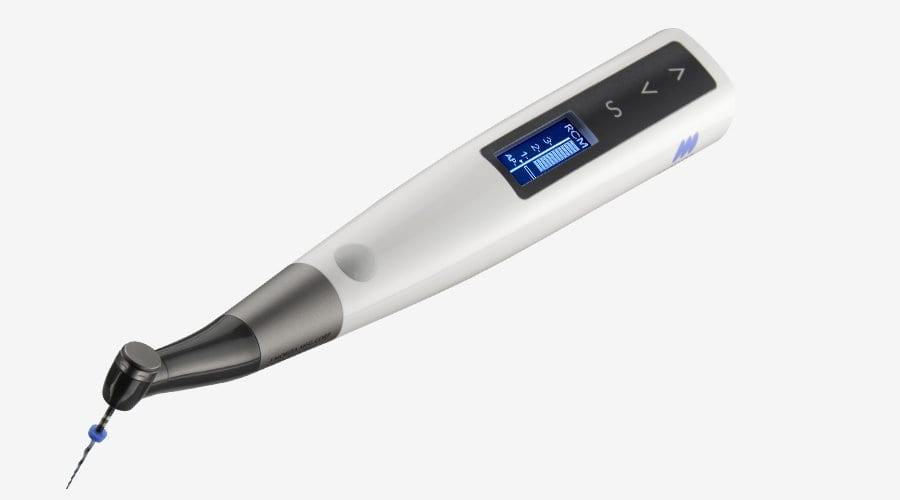

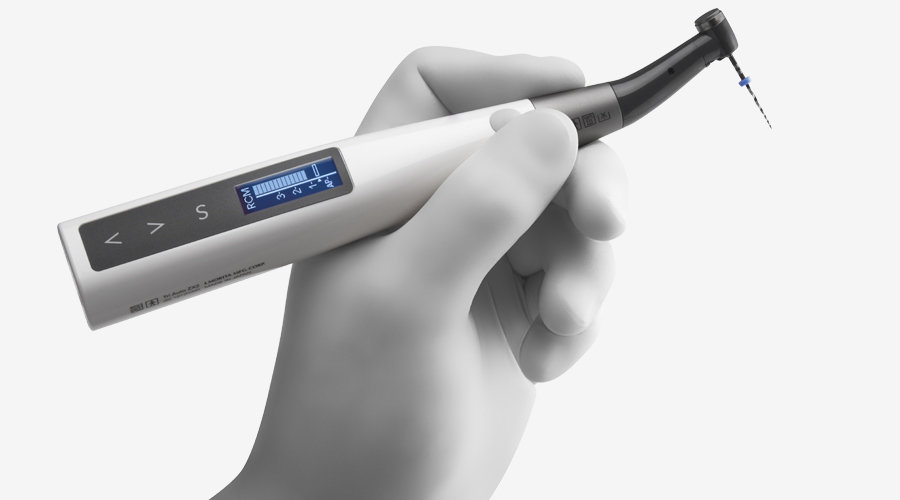

Tri Auto ZX2
Cordless Endo Motor with Apex Locator
*Compact, cordless motor with a built-in apex locator
*Achieve apical patency and create a glide path
*Improved safety and efficiency during canal shaping
*Apical control
"Specification"
-Name:
Tri Auto ZX2
-Model:
TR-ZX2
-Manufacturer:
J. MORITA MFG. CORP.
-Functions:
Root Canal Module
OGP (Optimum Glide Path)
OTR (Optimum Torque Reverse)
OAS (Optimum Apical Stop)
Auto Start / Stop
Auto Torque Reverse
Auto Apical Reverse / Stop
Auto Apical Slow Down
Auto Apical Slow Down
Auto Torque Slow Down
-Accessories:
Tester, Spray Nozzle
-Options:
LS Spray, Handpiece Holder,
External File Electrode (with cap)
"Handpiece"
-Free Running Operation Speed:
100 ± 20 - 1000 ± 100 rpm
-Torque:
4 Ncm or more
-Battery:
Lithium-ion battery (DC 3.7 V)
-Weight:
Approx. 140 g (including battery
and contra angle)
"Battery Charger"
-Rated Input Voltage:
DC 5 V
-Rated Input Current:
2.4 A
-Weight:
Approx. 280 g (AC adapter not included)
"AC Adapter"
-Rated Input Voltage:
AC100 - 240 V
-Rated Input Frequency:
47 - 63 Hz
-Rated Input Current:
0.4 A
