Outstanding Comfort and Experience For Your Patients.
Supria models are designed with the patient in mind. Their large aperture, long table with high weight capacity comfortably accommodates patients of all sizes up to 500 lbs.
The latest Fujifilm dose reduction technologies* surpass the XR-29 Smart Dose Standard. A larger 75cm gantry aperture, wider 47.5cm table with a long 180cm scannable range result in a more positive patient experience.
*In clinical use, dose saving features may reduce CT patient dose depending on the clinical task, patient size, anatomical location and clinical practices employed. Consultation with a radiologist and physicist are recommended to determine the appropriate dose needed to obtain diagnostic image quality for a particular clinical task.

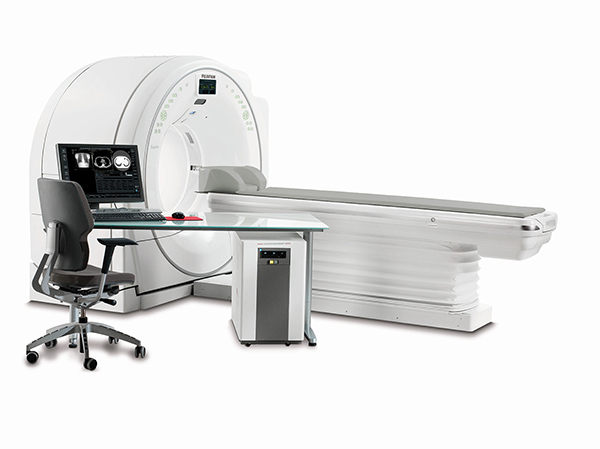

Features:
-Image Processor Cabinet
-Gantry
-Table
By minimizing siting costs, incorporating improved workflow processes and maximizing patient comfort, your investment in Supria translates into a faster return on investment.
Intelli IP Quick – Iterative Reconstruction.
Fujifilm’s latest workflow enhancing, proprietary engine that makes use of adaptive iterative reconstruction in both projection and image space. Its use reduces pixel noise at a given level of mAs as compared to filtered back projection without Intelli IP Quick.
Patient-centric design coupled with the engineering excellence of Supria puts you in control without compromising imaging performance.

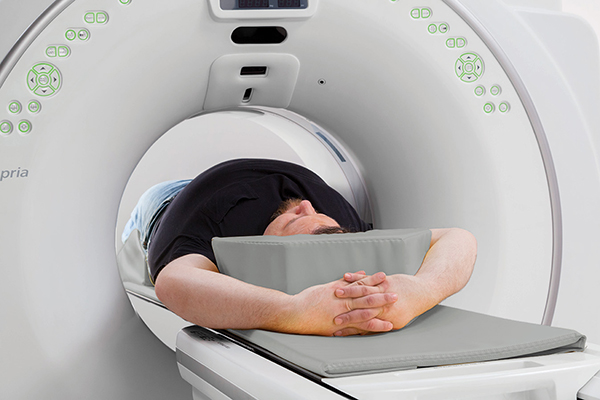

Wide 75cm Aperture makes for a more comfortable environment for the patient
500 lb weight-capacity table accommodates larger patients
Long Scannable range of 180cm for long coverage exams of tall patients with a single injection
Intuitive user interface
Smart Dose (XR-29) Compliant.
All new Fujifilm CT systems are designed to meet ALARA practices as well as complying with the new XR-29 Smart Dose Standard. Supria comes standard with the latest dose reduction, monitoring and reporting capabilities required by XR-29:
Automatic Exposure Control – Intelli EC (3-D)
Pediatric and Adult Reference Protocols
DICOM Dose Structured Report
CT Dose Check (XR-25)
Supria models surpass the XR-29 standard by adding: Intelli IP Quick – Iterative Reconstruction.
Simple Dose Report.
Provides a dose report embedded in the image series, available whenever and wherever the images are viewed.
Locked Protocols.
Protects protocols from unintended changes (unless an authorized password is used) to ensure more consistent imaging results and avoid unintended dose changes.
Reduced kV Imaging.
Allows selection of the lowest appropriate kV for the individual patients’ size — supports scanning at 80, 100, 120 or 140kVp.
Technology:
Slices 64, with 128-slice FineRecon
Rotation times (seconds) 0.75, 1.0, 1.5, 2.0
Data collection speed 1,200 views per second
Minimum Slice thickness (mm) 0.625
FOV (mm) 20-500
Max scan range (in/mm) 71/1800
Max scan rotations 100
Volume scan pitch 0.578 to 1.578
Scanogram with real-time display AP & Lateral
Normal scan axial mode
Volume scan helical mode With or without Orbital Synchronization
Dynamic Scan mode for Time Density Analysis
Type Solid state ceramic
Coverage 40mm with 64 rows and 64-electronics channels (True64 – DAS)
Detector elements 64 x 880 = 56,320
Anode heat capacity 5.0MHU
Anode max. cooling rate 748kHU/min
Tube cooling Oil/Air
Focal Spot (mm) 0.7 x 0.8; 1.2 x 1.4
Output 48kW
kVp selection 80, 100, 120, 140kV
mA selection 10-400mA (5mA steps)
Table-top width 19in (475mm)
Table weight capacity 500 lbs. (227kgs)
Horizontal accuracy ±0.25mm
Vertical travel range 18in (450mm) to 39in (1000mm), Scannable range 180cm
Scannable Range 180cm
Display single 24-inch LCD widescreen monitor
Display resolution 1920 x 1200
Matrix 512 x 512
Immediate Preview Recon
Reconstruction time up to 30 images/second (depending on recon parameter)
Iterative Reconstruction Intelli IP Quick
CT number range -32,768 to +32,767
Simple Dose Report
DICOM Dose Structured Report (SR)
CT Dose Check (NEMA XR-25)
MITA Smart Dose Compliant (XR-29)
