Intelligence Everywhere
-Unique bionic manipulator
-Intelligent speed regulation
-Multiple control mode
-Maximum examination coverage
Beyond the Limitation
-Superior battery capacity
-Dual-mode power management
-Rapid charging function
-Patented electricity transmission technology
-Enhance the life-span of power system
Innovation to Trust
-Anti-collision design
-Detector security technology
-Exposure status LED indicator
-Auto/Manual motion mode
Remarkable Self-Designed Detector
-Proven image quality
-Liquid & dust resistant
-Lighter & slimmer
-Pediatric & orthopedic application
Strategy for Unification
-5G wireless detector
-Detector sharing within DR family
Key Features
High-Quality Image
Mindray’s intelligent imaging processing technology
Classic quality and dedicated features
Anti-collision Design
270 degree implanted sensors for emergency stop
Double ultrasound sensors for motion buffering
Detector Security Technology
Detector holder activating sensor
Detector lock on the control panel
Exposure state LED indicator
Display the exposure and operational status
Auto/Manual Motion Mode
The manual mode ensures the device is capable of moving without any power
2cm Vertical Obstacle Across
9 Degree of Freedom
12 Degree Slope-Climbing

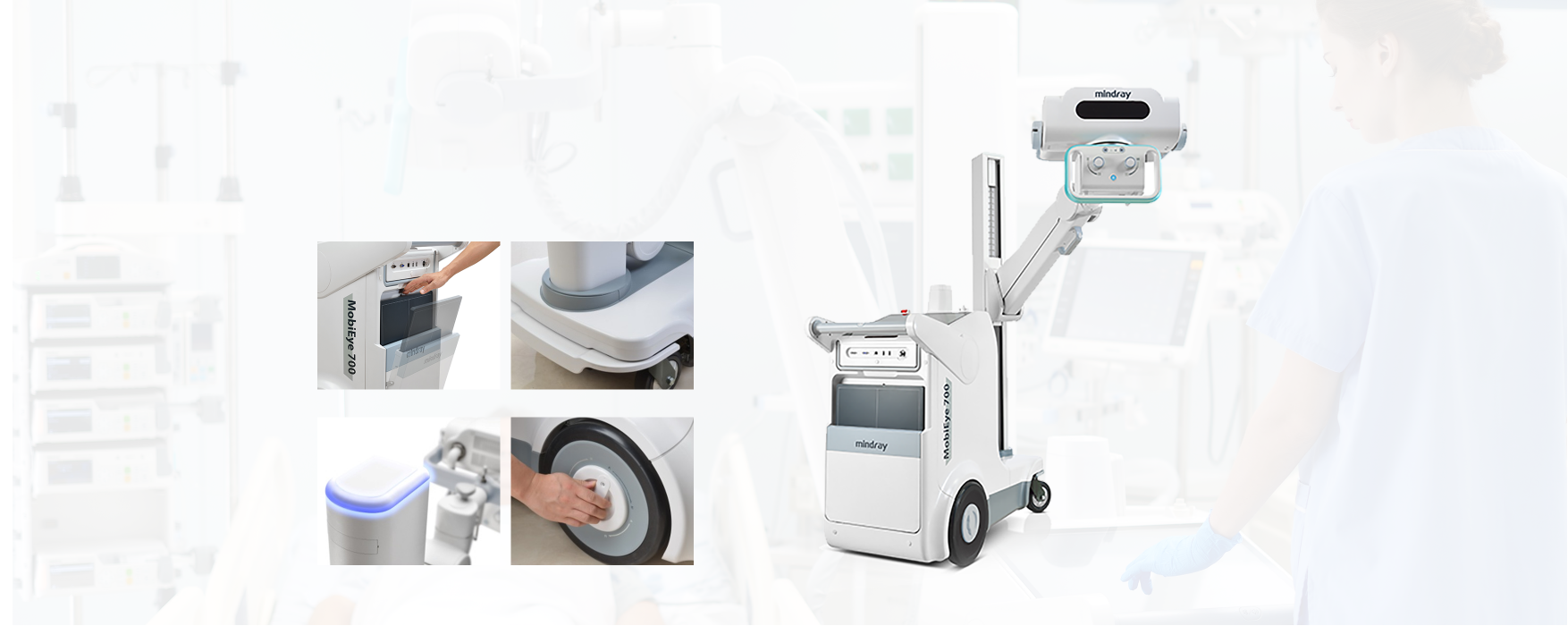

Mobility
Intelligence for Everywhere
As the name implies, mobility is the major criterion for any mobile device.
Mindray’s unique bionic manipulator and multiple control mode are absolute advantages in motion and positioning. With all these features about the mobility, MobiEye 700 is capable of delivering its intelligent performance into any complicated operational environment.
Marvelous Mobility
12-degree slope-climbing
2cm vertical obstacle across
360 degree rotation with one-hand operation
Intelligent speed regulation

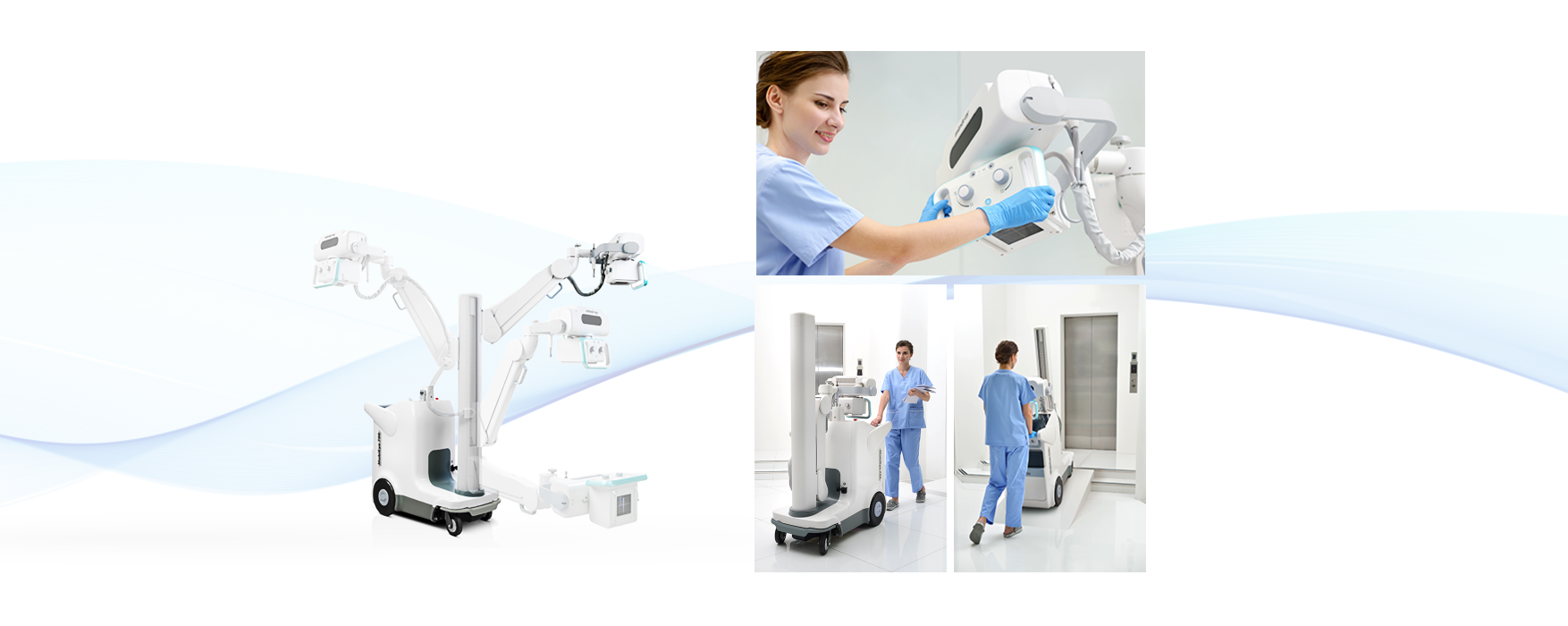

Unique Bionic Manipulator
Optimized bionic design
8 high flexible mechanical joints
Multiple Control Mode
Ergonomic designed handle
RF remote control for advanced movement
Slimmer and Lighter
55cm maximum device width
370 Kg weight
Performance
Mindray’s unique DROC software with classic configuration provides its highly stable and system and efficient workflow. In the meanwhile,9 degree of freedom on the movement combines with the bionic manipulator to offer maximum examination coverage on the clinical application.
Advanced DROC software
Classic DROS workflow, operation and functions
Dedicated upgrading for 19-inch multi-touch screen
Leading Configuration for Optimized System
Mindray’s self-manufactured HVG
30/50 KW electric power
460khz inverter frequency
Maximum Examination Coverage
2.3m maximum diagnostic height
1.8m SID for all reqions of interest

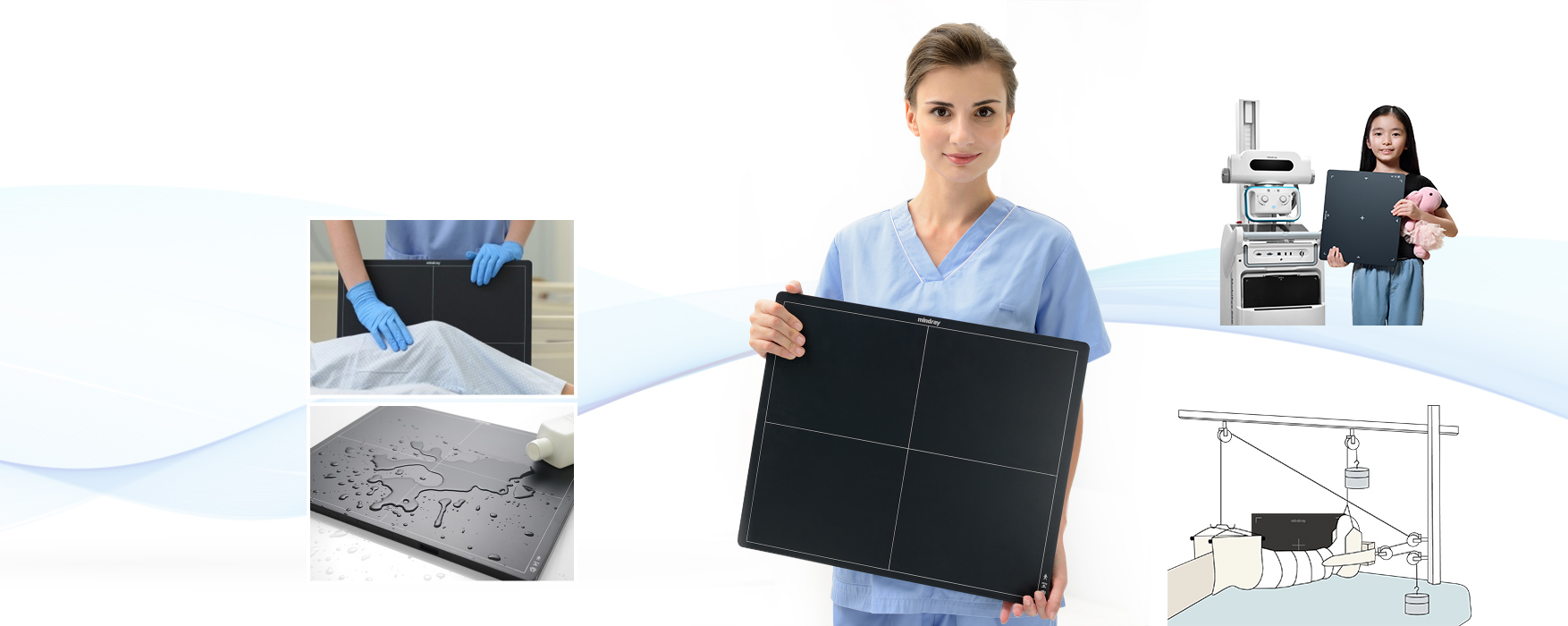

MPX Dectector
Mindray’s self-produced MPX detector and ‘Mind-home’ remarkable, breakthrough concepts are now being introduced to the public for the first time. Mindray’s top-level patented technologies have been assembled in the MPX light-weighted wireless detector, providing the finest possible user experience
Mindray MPY Detector
Csl+TFL
High DQE
Wireless design
Liquid and Dust Resistant
Blood and body fluid
Liquid and Powdered medication
Say ‘NO’ to buly
Weights only 3.3kg
Optional gird of maximum flxbility
Mind-Home
Automatic detector charging
Detector security and protection
5G Wireless Detector Configuration
Innovative antenna technology for 5G Wifi connection
Ultra-high speed data acquisition and transmission

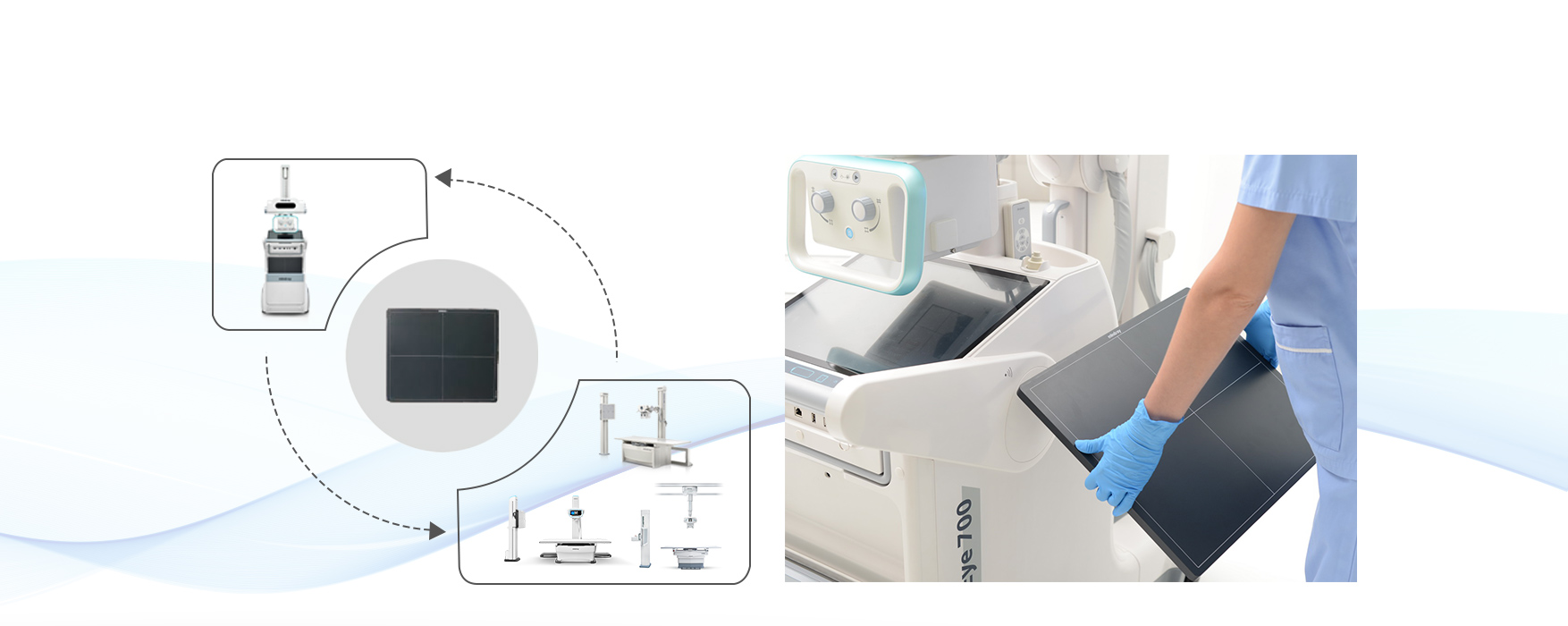

Unification of Radiology Family
Excellent compatibility for stationary and mobile radiology device
Cost-efficient solutions for wireless detector sharing usage
