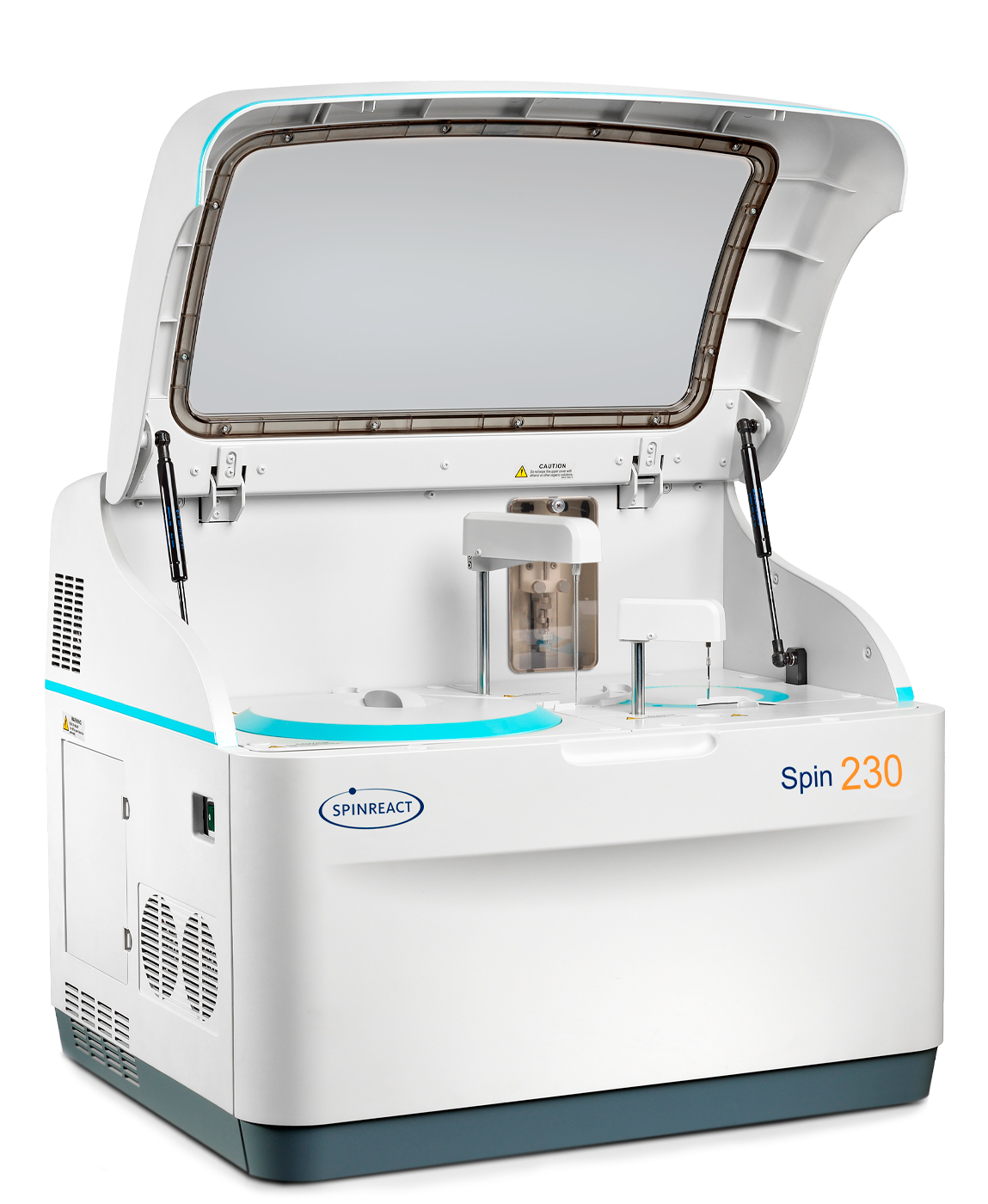

Spin 230 CLINICAL CHEMISTRY Automatic Analyzer
-Throughput 200 t/h
-Up to 80 sample positions
-Up to 80 reagent positions
-Disposable Cuvettes
*Reagent system :
Up to 80 positions refrigerated tray
Reagent aspiration volume 100-250 μl - 0,5 μl
Reagent level real time monitoring
Reagent probe with volume sensor and
vertical anti-collision function
*Sample system :
Up to 80 positions refrigerated tray
Sample volume:2-45 μl - 0,1 μl
Auto-dilution system
*Reaction system :
40 disposable cuvettes
Reaction volume:100 - 360μl
Reaction temperature at 37 ºC ±0,1 ºC
mixing bar independent and teflon coated
*Optical system :
Halogen-tungsten lamp
8 Wavelengths:340 nm, 405 nm, 450 nm, 510
nm, 546 nm, 578 nm, 630 nm, 670 nm
*Calibration methods :
Linear (one point, two points and multi-points),
Logit-Log 4P, Logit-Log 5P, spline, exponential,
polynomial, parabola
*Control Methods :
X-R, L-J, Westgard multi-rule, Cumulative sum
check, twin plot
*Operating system :
Windows
PC not included
