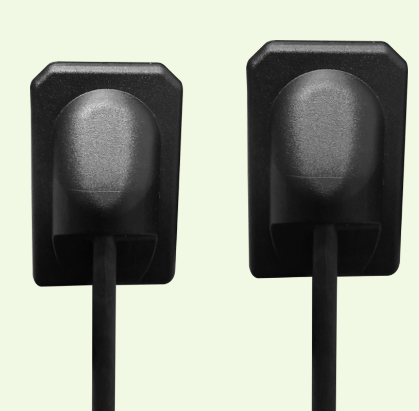

The Genoray PORTVIEW is a digital intra-oral sensor designed for high-quality dental X-ray imaging. Its key specifications include:
Sensor Sizes:
Size 1:Active area of 20 x 30 mm
Size 2:Active area of 26 x 34 mm
Resolution:
Pixel size:19 microns, providing high-resolution images
Spatial resolution:Approximately 20 line pairs per millimeter (Lp/mm)
Image Sensor:
CMOS area image sensor with 1.5 megapixels (1,000 x 1,500 pixels) for Size 1
CMOS area image sensor with 2.2 megapixels (1,300 x 1,700 pixels) for Size 2
Dynamic Range:
Size 1:57 dB
Size 2:75 dB
Scintillator Type:
Cesium Iodide (CsI)
Interface:
USB 2.0 for direct connection to a PC
Durability:
Waterproof and dustproof with an IP67 rating, ensuring protection against fluids and contaminants
Design:
Ergonomic rounded corners for enhanced patient comfort
Compatibility:
Automatic electronic gain control allows compatibility with a wide range of X-ray equipment
These features make the Genoray PORTVIEW a reliable choice for dental professionals seeking high-quality intra-oral imaging solutions.
