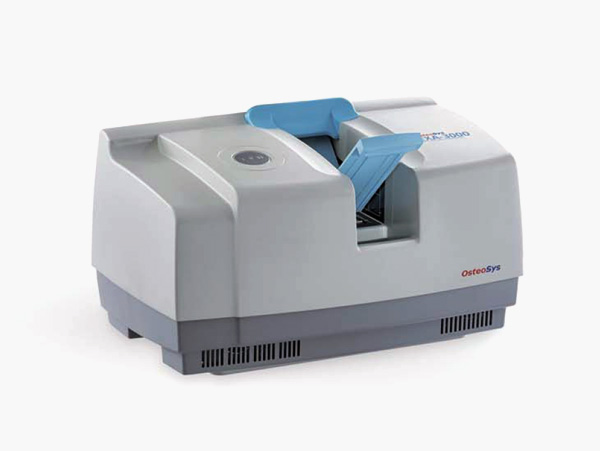

EXA-3000 is a peripheral Dual X-ray Absorptiometry (pDXA) device with its multi-site diagnosis function (forearm and calcaneus).
Peripheral Dual-energy X-ray Absorptiometry(pDXA)
Easy to Measure Multi-site Scan with Quick Scanning Time
EXA-3000 is especially designed for scanning forearm and calcaneus of patient by DXA(Dual energy X-ray absorptiometry) technology. It is fastest BMD(Bone Mineral Densitometry) in the world. The lifter, optional item it’s specifically designed for EXA-3000 makes easy to lift up and down and it allows a patient to be more comfortable.

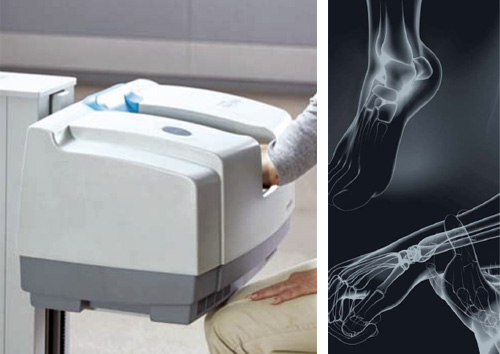

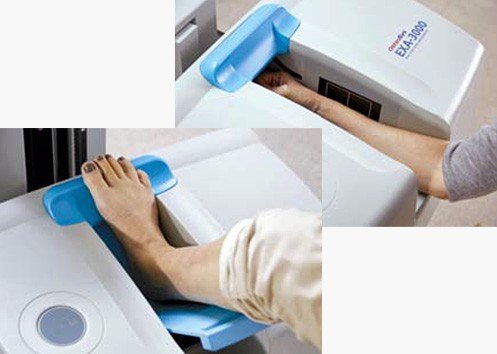

Precise BMD Results for Forearm and
Calcaneus
EXA-3000 is specially designed for an easy and swift scanning of forearm and calcaneus. We guarantee a precise result with DXA technology.
pDXA with a Cone Beam Technology
Also, it is possible for you to diagnose precisely with a low level of radiation by DXA with a cone beam technology.
Easy Operation and User-Friendly Interface
The easy operation and user-friendly interface of EXA-3000 offers you with the special result report suggesting a follow-up test and relevant treatment.

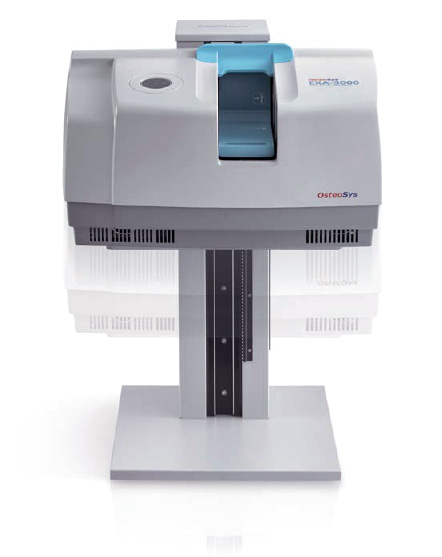

Optional Lifer for Forearm and Calcaneus
If you utilize the lifter, which is an optional item for an easier lifting up and down of the device, you can measure the two different areas(calcaneus and forearm) with one device more conveniently.
* Specification :-
- Measurement Type :
pDXA (Peripheral Dual energy X-ray Absorptiometry)
- Measurement Method :
Cone beam
- Scan site :
Forearm, Calcaneus
- Scan time :
Forearm – 5 Sec. / Calcaneus – 5 Sec.
- Reproducibility :
≤ 1.0% C.V.
- Measured parameter :
T-score, Z-score, BMD, BMC ratio of T-score and Z-score
Pediatrics / Trend report / DICOM & PACS / GDP (Growth Diagnosis Program) *Optional
QC check (Daily QC phantom)
- Dimension :
(W)410mm × (D)670mm × (H)373mm
- Weight :
34.5kg
- Power consumption :
100~240VAC, 50~60Hz
- Lifter(Optional) :
Dimension – (W)654mm × (D)480mm × (H)88mm
Weight – 36kg
