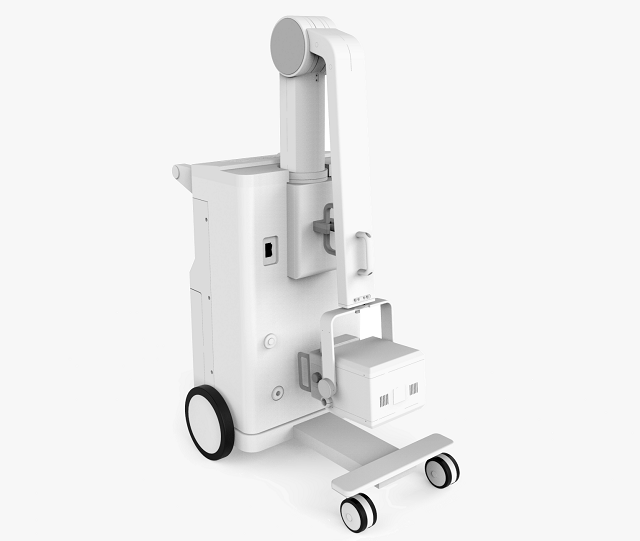

- Compact Mobile X-Ray Systemز
EXSYS MOBIRAD 50 :
- Compact Size
- Ultrasonic Sensor-based Automatic SID Control
- Easy Positioning
- Rechargeable Power Supply
Compact & Convenient DRTECH's Basic Mobile X-ray System :
- Excellent mobile X-ray system is determined by its high mobility and image quality.
- DRTECH's digital mobile X-ray system is compact and easy to move in tight spaces
and provides high image quaility with seamless integration of software and detector, even at low dose.
Easy and Quick X-ray Imaging :
- with Simple and Intuitive Operationز
Compact Size for Easy Mobility :
- Compact Size for increased maneuverability.

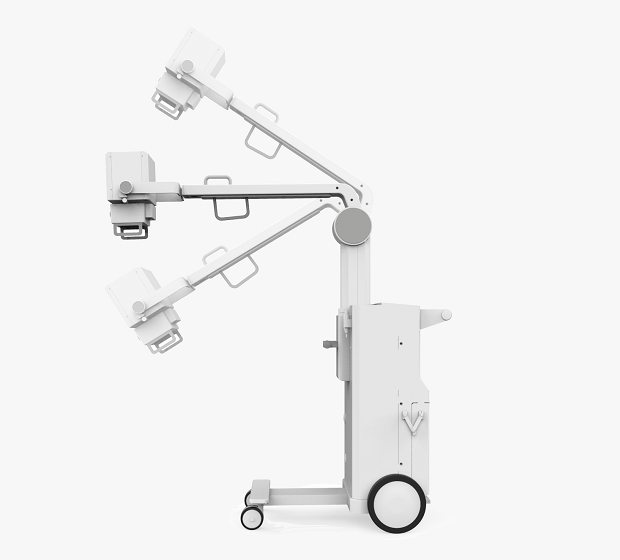

- Easy Positioning by the height-adjustable arm.
Convenient & Fast Workflow :
- Ultrasonic Sensor-based Automatic SID Control
- Convenient X-ray generator setting with the intuitive user console
- Rechargeable power supply
EXSYS MOBIRAD 50 applied by QX Platform :
- QX Platform provides premium imaging experience in dose reduction and diagnostic accuracy

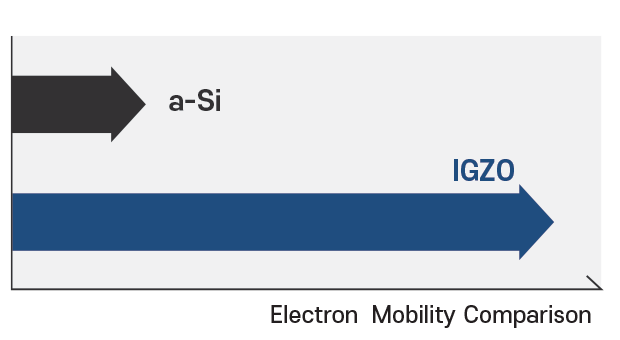

High Resolution IGZO TFT :
- IGZO Technology has 10 times faster electron mobility combined with lower leakage current compared to a-Si. As a result, the IGZO TFT technology has improved resolution by Ultra noise reduction.
FOCUS Scintillator Technology :
- FOCUS (Fluorescent Optical CsI Upgraded Structure) has more focused optical signal compared to conventional CsI.
- As a result, ultra-low noise is achieved by FOCUS Technology.
Proven Image Quality and Efficiency in Covid19 diagnosis :
- EVS Advanced Series Detector, Used in COVID19 Diagnosis at Triage Systems and Screening Facilities World-wideز
Specifications :
- Model : MobiRAD 50
- Capacity : 5KW
- Power Supply : Capacitor Powered
- Line Nominal Phase : 220VAC, 50/60Hz
- Max mA/ KV : 100mA/ 110KV
mAs:0.32~200mAs
