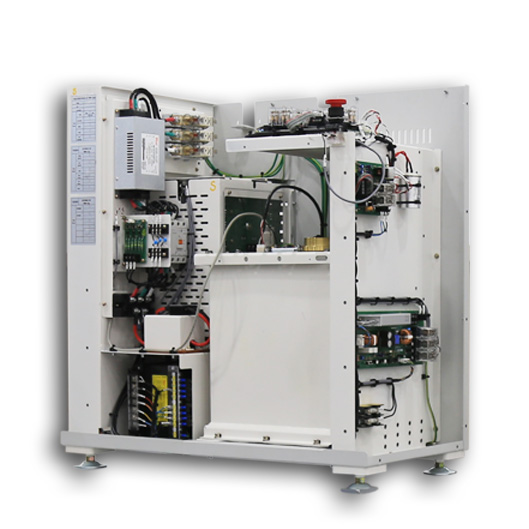

HIGH FREQUENCY GENERATORS
Our generators are suitable and excellent complement for all radiographic X-ray systems. They consist of either film or digital systems and adopt a user-friendly interface and operation. These generators meet both clinic and hospital grade requirements and they are available in either single-phase or three-phase and in output powers of 32kW, 40kW, 50kW, 65kW and 80kW.
Specifications:-
Radiographic KV range Accuracy:40-150kV (±3%)
Power Output ratings (at 0.1 sec) Accuracy:800mA @ 81kV 630mA @ 100kV 400mA @ 150kV ±2%
Exposure Time Range Accuracy:0.001 - 6 seconds (81 steps)±2%
Output Frequency:500kHz
mAs Range:0.1 ~ 1,000mAs
High Voltage Ripple(TYP):<1kV@100kV
Automatic Exposure Control (up to 2 chambers):Optional
Power Supply Unit (PSU):Yes
Buckys (2 standards):Standard
Anatomical Programming:1,290 APR
Line Voltage (phase):380VAC, 50/60Hz, Three phase
