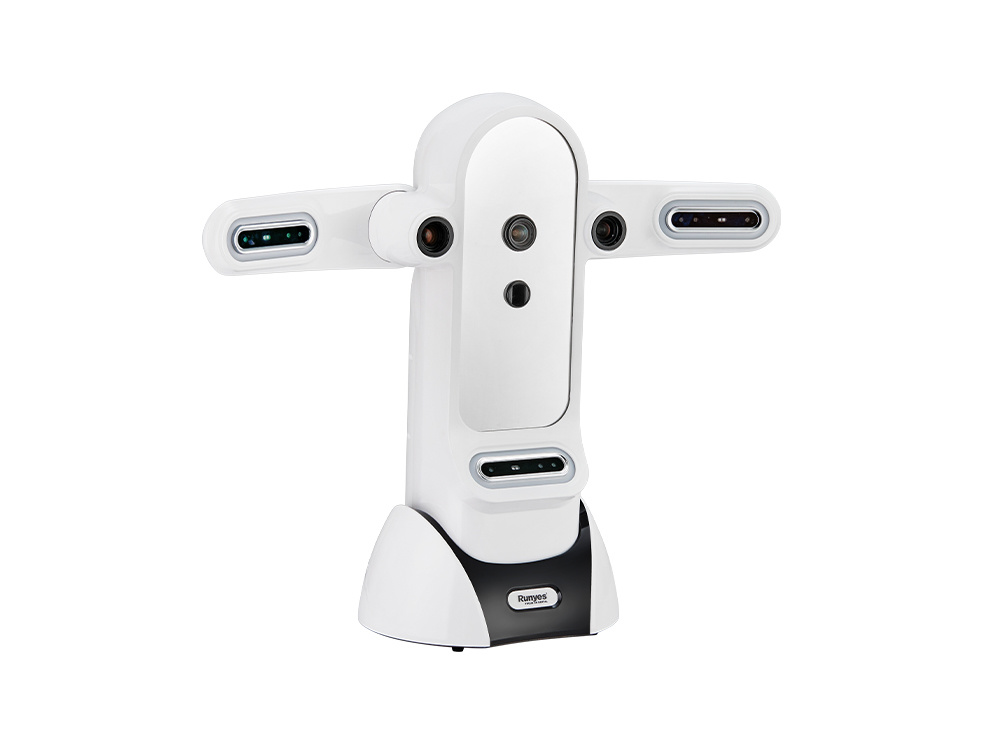

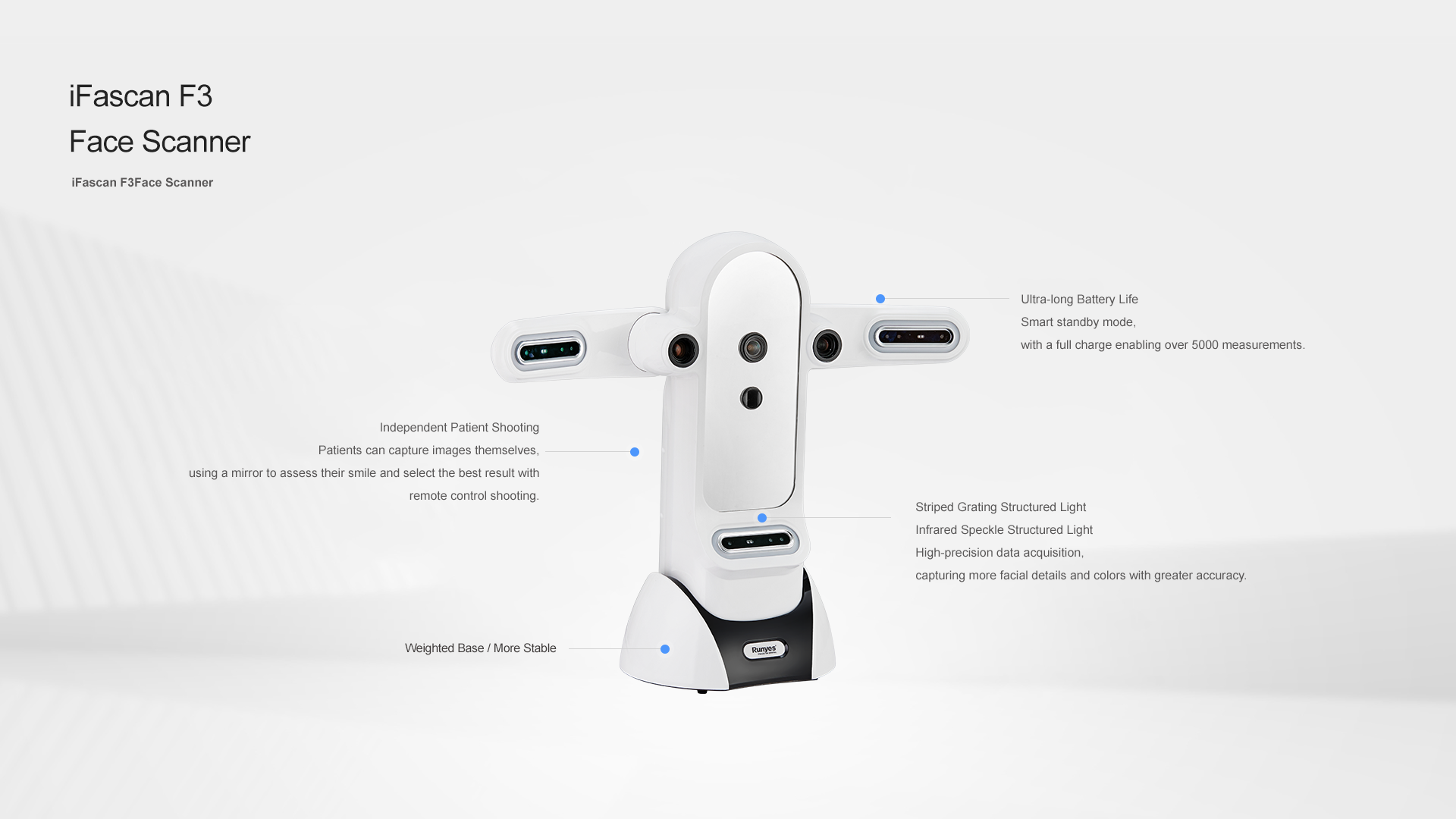

iFascan F3Face Scanner
-Independent Patient Shooting Patients can capture images themselves, using a mirror to assess their smile and select the best result with remote control shooting.
Weighted Base / More Stable
Ultra-long Battery Life
Smart standby mode, with a full charge enabling over 5000 measurements.

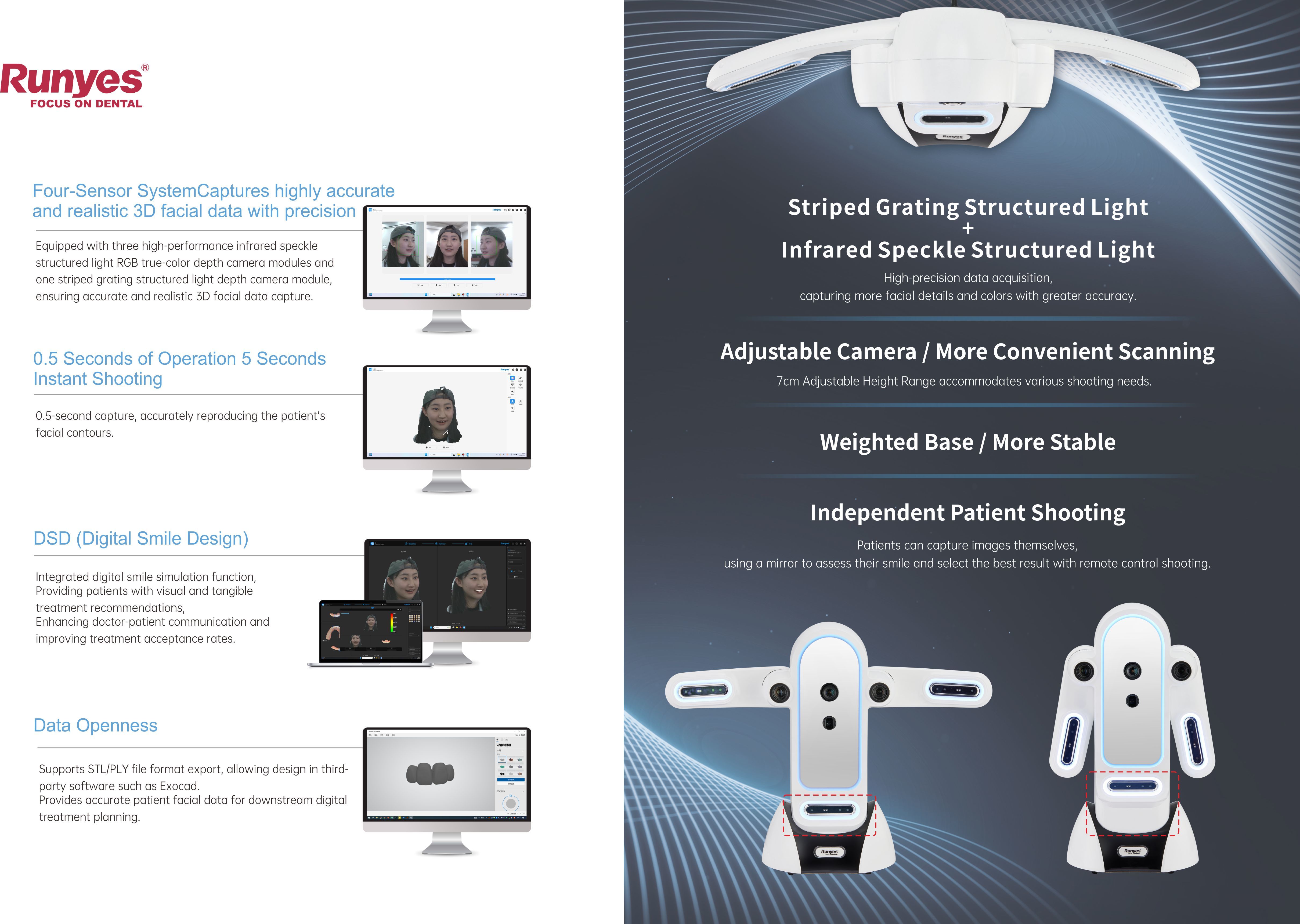

Striped Grating Structured Light
Infrared Speckle Structured Light
High-precision data acquisition, capturing more facial details and colors with greater accuracy.
Product Parameters
-Light Source Type: Structure Light
-Shooting Distance: 40-50cm
-Modeling Accuracy: <0.1 mm
-ProductUnfolded Size: 900 mm* 530 mm* 225 mm
-Shooting Time: 0.5s
-Shooting Range: 250 mm*300 mm
-Output File Format: STL, PLY, etc.
-System: Windows 10(64-bit),Windows 11 (64-bit)
-CPU: Intel Core i5 10500H or above.RecommendedIntelCorei7-10800H
-Graphics Card: Nvidia GTX2060 orabove,Recommended Nvidia RTX3070
-Memory: 16 GB or above.Recommended 32GB
-Hard Drive: 1 TB SSD
-Resolution: 1920*1080
-LAN Port: Recommended 1 Gbps
