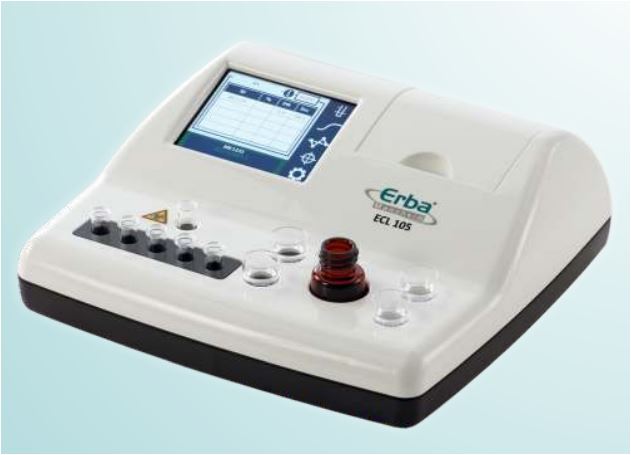

Clinical ECL 105 1 Channel semi-automated coagulometer
1 Channel semi-automated coagulometer which performs measurements of all clotting assays as well as D-Dimer. It is ideal for small laboratories.
-Specification :
Operating principles:
Clotting assays by light scattering at 640 nm
Immuno-turbidimetric assays at 800 nm
-Functional characteristics:
1 measuring channel
5 reaction cups incubation positions at 37°C +/- 0.2°C
5 reagent positions, 3 positions for 37°C +/- 0.2°C incubated reagents, including 1 for vial with programmable stirring
parameters:PT, APTT, TT, Fibrinogen, Coag. Factors, D-Dimer, Protein S, Lupus Anticoagulans
Automatic start with standard pipettes
3,5‘‘ Resistive colour touch-screen
Built-in thermal printer
RFID for security of use
Possible connection to LIS
Possible connection to a bar code reader or an external keyboard
Monitoring of expirations of reagent, calibrators and controls
Quality Control program with automatic Levey Jennings graph monitors system performance
Comprehensive Erba Haemostasis reagent line
-Technical parameters:
Universal power supply 100-250V~47-63Hz
dimensions:216 x 205 x 75 mm
weight:1 kg
2 USB ports (1 x type A, 1 x type B)
