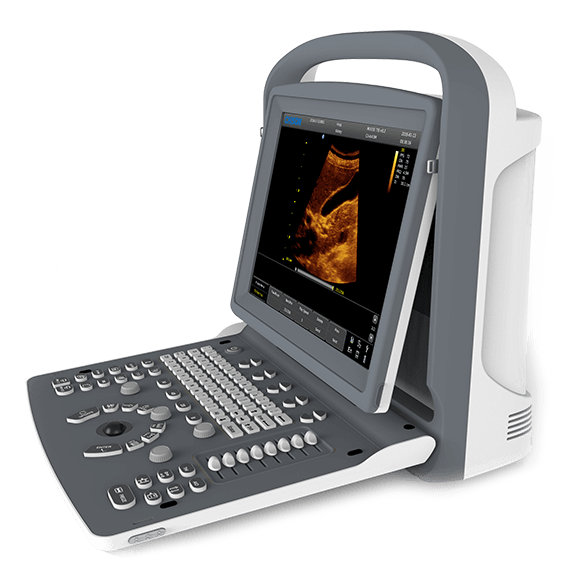

CHISON ECO portable ultrasound machine is aimed to diagnose easily and accurately, with its reasonable price and high quality from CHISON medical ultrasound manufacturer, it has aleady standed out above the crowd.
Specifications:
Applications:
-Abdomen, OB/GYN, Vascular, Small parts (breast, testicles, thyroid), Musculoskeletal, Conventional & Superficial, Pediatrics, Basic Cardiac.
Imaging technologies:
- i-Image, Compound imaging, SRA, THI
Display Modes:
- B, B/B, 4B, M, B/M, PW
Gray Scale:
-256 Levels
Scanning Depth:
- 240mm Max (depending on the probe types)
Probe Frequency:
- 2.5 MHz - 11.0 MHz (Depend on the probe)
Cine Loop:
- 256 frames
Zoom:
- 4 steps
Software Packages:
- Dedicated measurement package: General, OB/GYN, URO, Cardiac, Vascular, Small parts
Archives Management:
- Patient information management, image record, exam report
Power Supply:
- AC 100V-240V, 50Hz-60Hz
Standard Configuration:
- 1 probe connector, 3 USB ports, VGA port, Video port, LAN port, Full Screen Display Mode, i-Image, Chroma, SRA, Compound imaging, THI, 8G memory card, PW Mode
Option:
- 2 probe connectors, DICOM, Waterproof keyboard cover, Carrying Case (BG-100), Cart TR 9000, Support PC Printer, Video Printer, Built-in Battery
Features:
Advanced Imaging Technologies:-
Ergonomics:
-Rotatable LED (0~30°): Tailored to different viewing angles:
-Ultra-compact & Ultra-light-
-Easy to carry
-Keyboard: For easy and quick access
-Dedicated cart TR 9000
-Streamlined workflow
ECHO :
-Advanced technologies:
-i-Image
-THI
-SRA
-Full digital beamformer
-Trapezoid
-Automatic PW trace
-Chroma
-Full screen display mode
-AIO
Economic :
- The latest platform & more advanced chip-set: brings you better image quality and features at less cost in a more compact box
- Support PC printer, reduce investment & day
ECO-friendly:
-Less radiation
-Less power consumption
-Longer usage life: LED
-Longer battery >2.5 hours
Support PC Printer:-
Benefits:
-PC printer is less expensive than video printer
- A4 paper saves more cost than thermal paper for everyday use
-Detail report can be printed (with
-More expensive
-Can ONLY print
