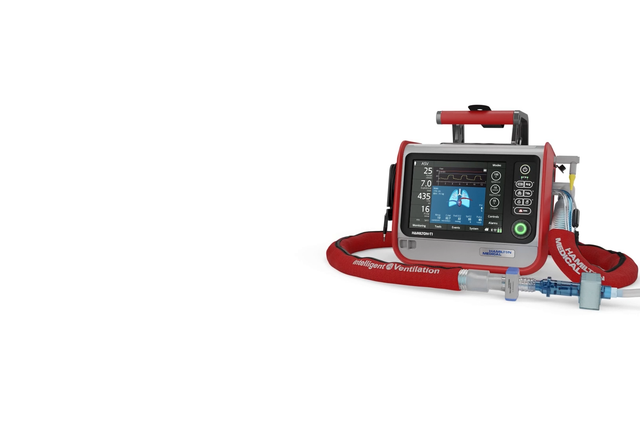

HAMILTON‑T1. Intelligent transport ventilator
Our transport specialist! From neonates to adults
- Fully featured ICU ventilator for transport

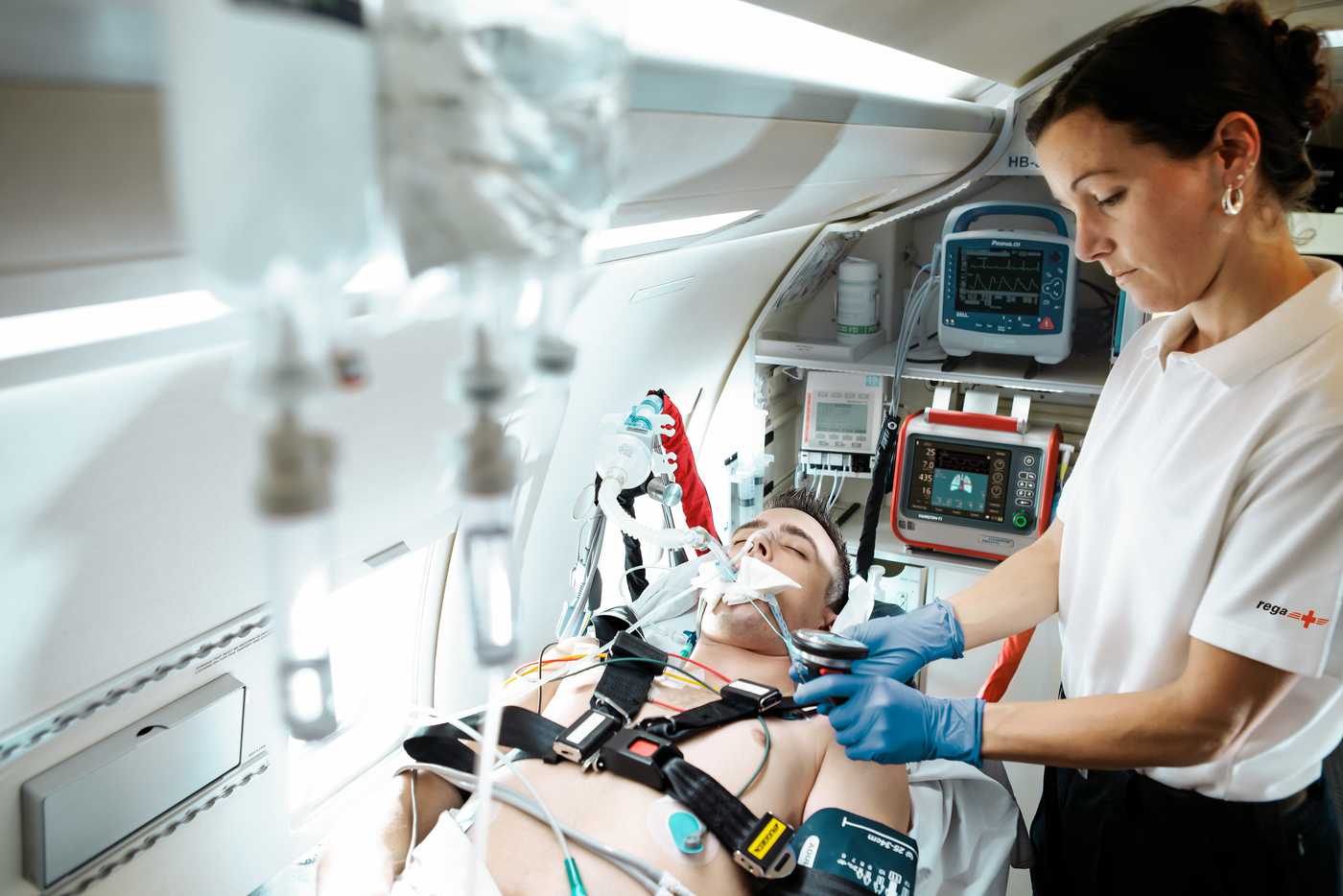

- Approved for patient transport on the ground, in the air, and on the water
- Inside and outside of the hospital
Survival of the fittest! In the most demanding conditions
- Temperatures from ‑15°C to +50°C
- Ingress protection IP54
- Maximum altitude of 7,620 meters
- Rugged reinforced housing with impact protection and vibration proofing

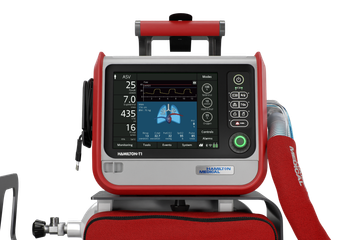

- Shock‑resistant, antireflective display
Continuous ventilation therapy. Use the same mode and same settings as at the bedside
- Volume‑targeted and pressure‑controlled ventilation modes
- Adaptive ventilation with ASV® and INTELLiVENT®‑ASV
- Noninvasive ventilation
- High flow nasal cannula therapy
Fiercely independent. No compressed air and battery powered
- High‑performance turbine

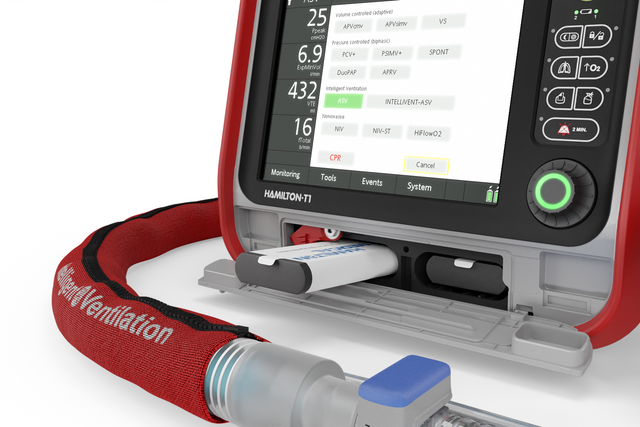

- One integrated and one hot‑swappable battery
- Additional connector for low‑ pressure oxygen
Communication is key. For a better connection

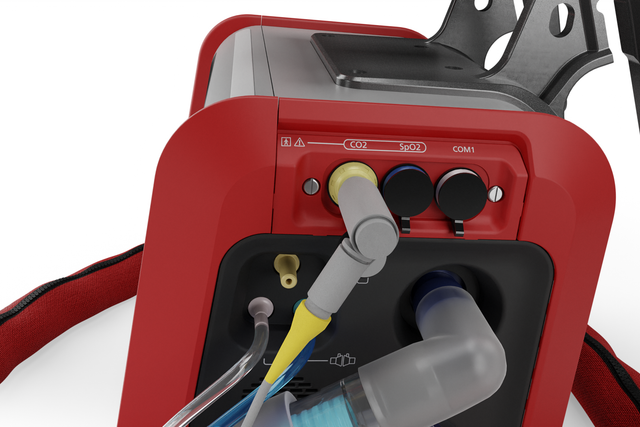

Communication board options for:
- SpO2 and/or CO2 sensors
- Nurse Call
- PDMS
- HAMILTON‑H900
- RS232
Buckle up. Mounting solutions for a smooth ride
Various solutions are available for all the main types of helicopters and ambulances, as well as for hospital beds, stretchers, surfaces, shelves, poles, rails, and ceilings.
With four different types of handles and multiple mounts, the HAMILTON‑T1 is a portable ventilator that adapts to your specific environment and situation.
CPR ventilation adapts the ventilation settings if you have to perform CPR. It shows the main monitoring parameters and curves relevant to the situation, and supports your workflow with quick access to preconfigurable settings, adequate alarm and trigger adjustment, and a CPR‑timer display.
* Technical data :-
Patient groups ::Adult/Ped, Neonatal
Dimensions (W x D x H) ::320 x 220 x 270 mm (ventilation unit)
630 x 630 x 1380 mm (without handle)
630 x 630 x 1433 mm (with handle)
Weight ::6.5 kg (14.3 lb)
18.5 kg (40.8 lb) with trolley
Monitor size and resolution : 8.4 in (214 mm) diagonal 640 x 480 pixels
Battery operating time ::4 h with one battery / 8 h with two batteries
Air supply ::Integrated turbine
O2 connector ::DISS (CGA 1240) or NIST
Connectivity ::CO2/Nurse Call/COM1, CO2/SpO2/COM1, CO2/SpO2/Humidifier & COM1, USB port, RJ 45 Ethernet port
Loudness ::43 dB in normal operation
