DEFIBRILLATOR
LiFEGAIN CU-HD1

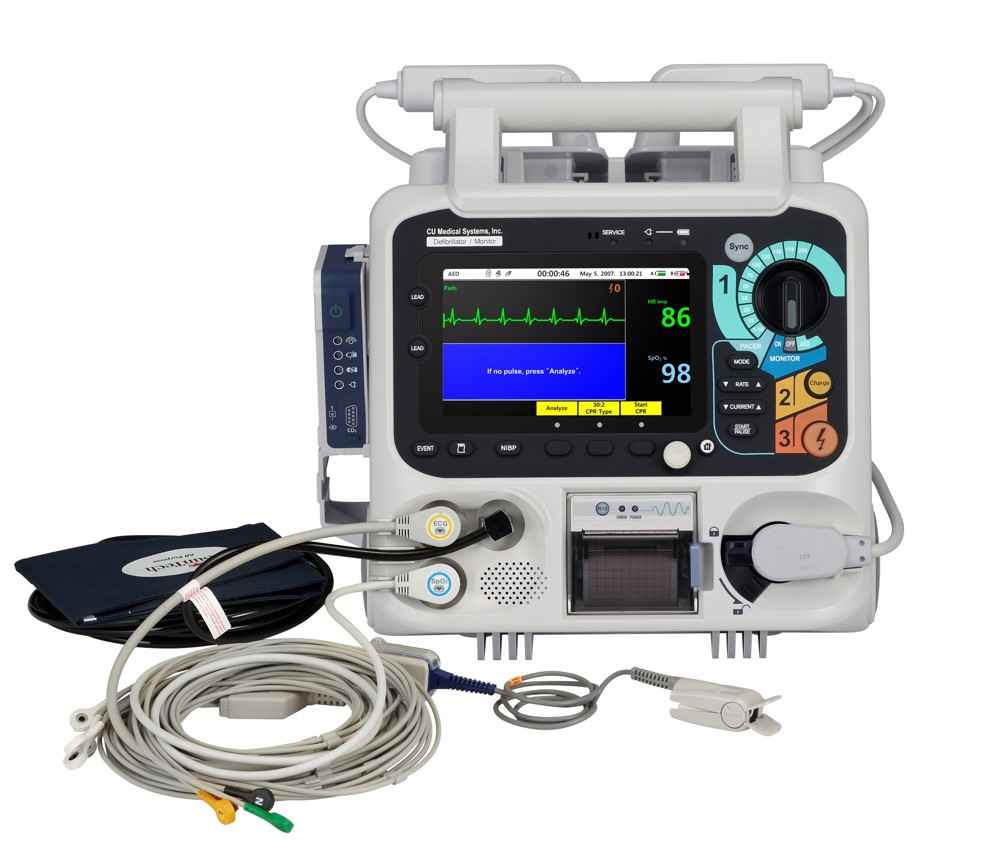

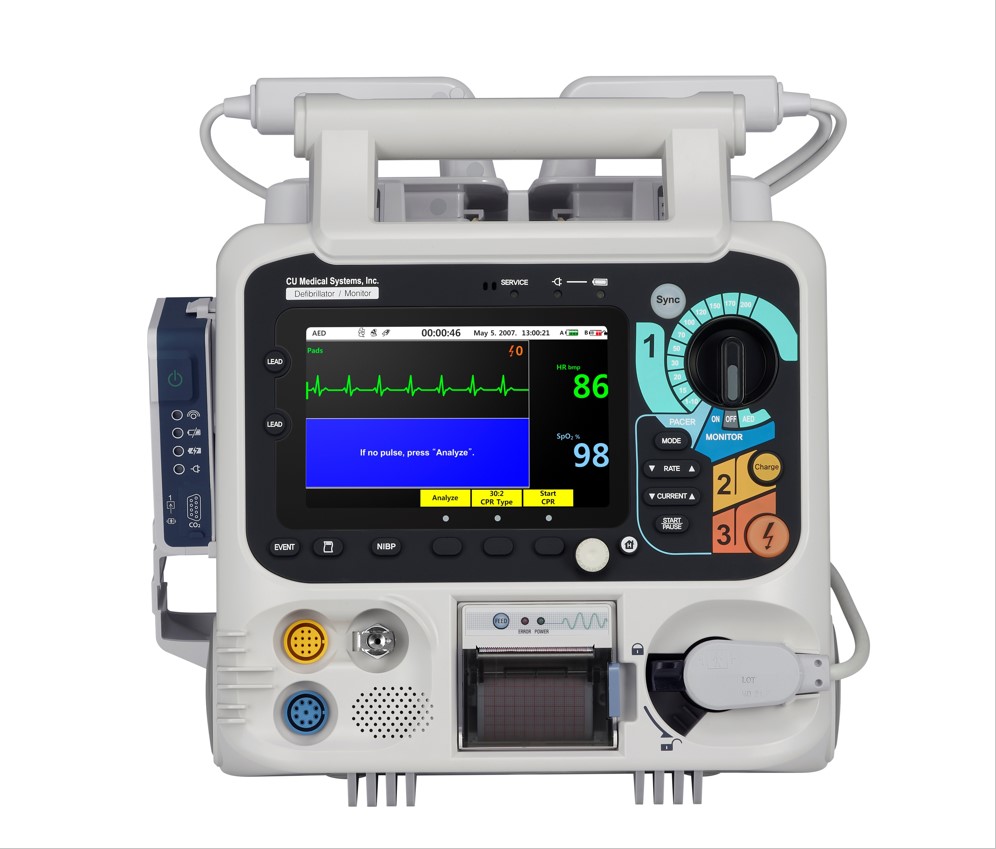

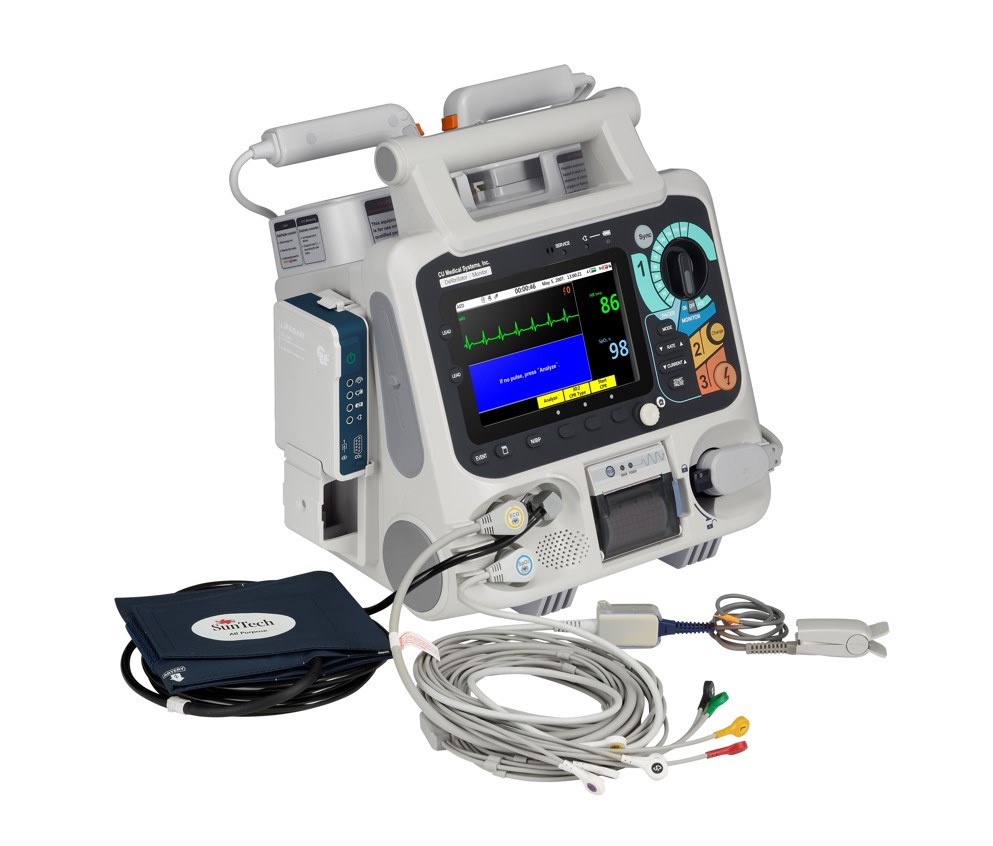

Exterior View
Dimensions:326 x 253 x 356mm (W x L x H)
Weight:5kg or below (without accessories)
Display
Type:TFT LCD (including backlights)
Screen Size:152.4 (W) x 91.44 (H) mm
Resolution:800 x 480 (RGB) pixels
Defibrillator
Operation Mode:Semi-automatic/Manaul Defibrillation
Output Waveform:e-cube Bipahsic (BTE type)
Output energy:200 Joules fixed, Manaul 1~200J
R-sync defibrillation:transfer of the defibrillation energy synchronized with the R-wave out of QRS of the ECG signal within 60ms.
ECG Monitoring Mode
ECG Input:3-Lead, 5-Lead, 12-Lead
Heart rate display:30 ~ 300 bpm (Accuracy : 3 bpm)
ECG Size:5mm/mV, 10mm/mV, 20mm/mV
Pacer Mode
Pacing Type:(Noninvasive Pacing)
Energy Waveform:Monophasic Rectangular
Pacing Mode:Demand mode, Fixed mode
Energy Magnitude:5 ~ 200 mA (±5mA)
Pacing Rate:30~180 ppm (±1.5%)
SpO2 Pulse Oximetry
Pulse rate:20~250bpm (±3bpm)
SpO2 value:1~100% SpO2 (±3digit)
Noninvasive Blood Pressure (NIBP)
Measuring Method:Oscillometric
Systolic Range
- Adult : 40~260 mmHg
- Pediatric : 40~160 mmHg
- Neonate : 40~130 mmHg
Diastolic Range
- Adult : 20~200 mmHg
- Pediatric : 20~120 mmHg
- Neonate : 20~100 mmHg
Event Storage
External Storage
ECG Data:Maximum 100 data & Store more than 192 hours of events and ECG data
Voice Data:store more than 8 hours
Printer
Print Method:Thermal printing
Width:48mm
Print Rate:25mm/sed
Printer paper:Width 58mm, Minimum diameter 40mm
Accessories
• Standard Package
Device, Adult pads(1), Pads adapter Cable(1), ECG Electrode (1Pack), 3-Lead(1), Printer paper(5), SD Card(1), SD card Reader(1), AC cable(1), Rechageable battery(1),Test loader(1), User’s manual(1)
• Optional Accessories
Sp02 Module set – Probe, Extension cable(1)
NIBP Module set – Adult,. Pediatric, Neonate cuff, Extension cable (1)
5-Lead ECG Cable(1), 12-Lead ECG cable(1), Pacer(1), paddle(1), Gel(1), EtCO2(1)

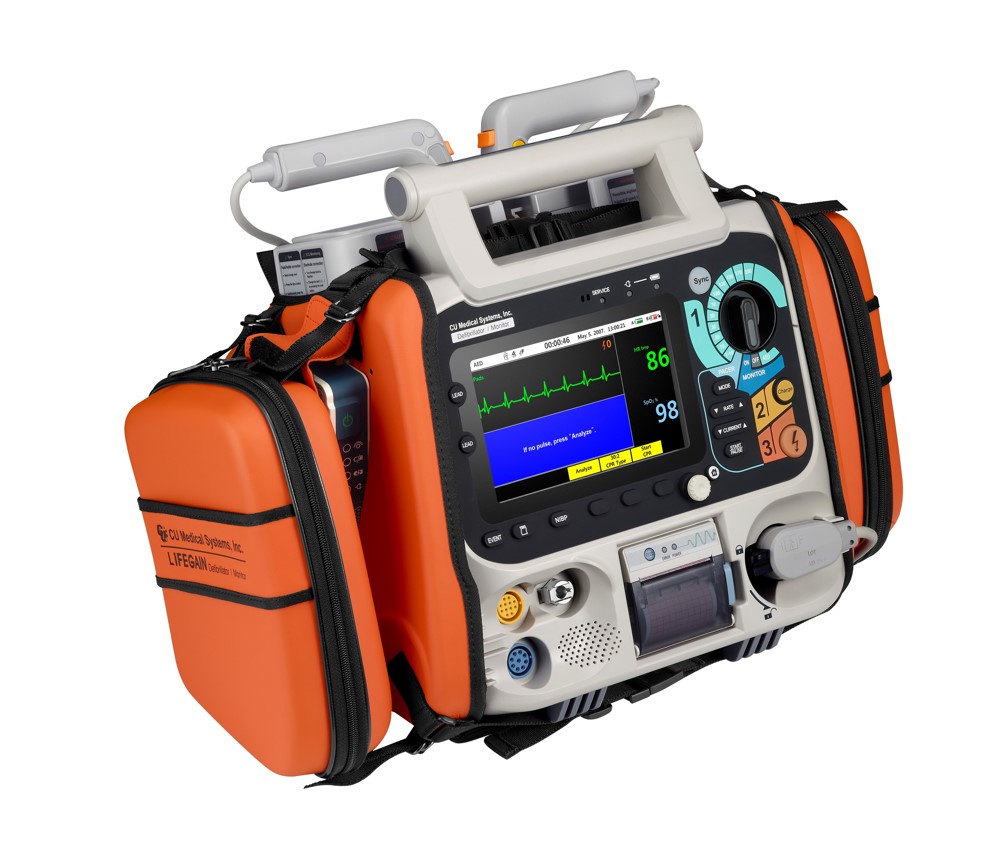

Car ciger lighter Jack(1), PC commucation Software(1), Carrying Case(1)
