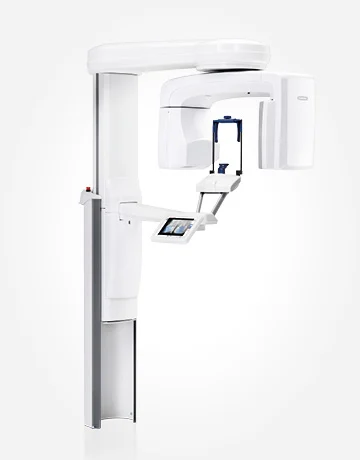

Planmeca Viso® G7 is the most capable of our flagship Planmeca Viso® CBCT imaging devices. Bolstered by cutting-edge technology, the latest innovations from Planmeca R&D, and an FOV that goes up to 30 x 30 cm, it is a future-proof 3D imaging device which easily meets even the most demanding clinical needs, from general dentistry to implantology, endodontics, orthodontics, as well as oral and maxillofacial surgery.

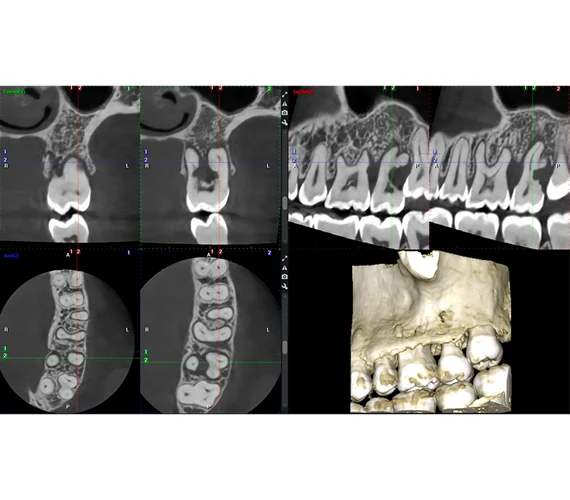

Planmeca Viso G7 comes with a full range of imaging programs, from 3D dental and ENT programs to panoramic imaging as well as cephalometry. The device enables imaging everything from a single tooth to a full skull.
Technical data:-
Anode voltage 60–120 kV
Anode current 1–16 mA
Focal spot 0.5 mm, fixed anode
Image detector Flat panel
Image acquisition 200 / 360 degree rotation
Scan time 1–36 s
Typical reconstruction time 2–55 s
Physical space requirements:-
Width 155 cm (61 in.)
Depth 154 cm (60.6 in.),
Height* 160-234 cm (63-92 in.)
Weight 165 kg
With cephalostat:
Width 216 cm (85 in.)
Depth 154 cm (60.6 in.)
Height* 160-234 cm (63-92 in.)
Weight 165 kg + 20 kg (ceph)
*The maximum height of the unit can be adjusted for offices with limited ceiling space.
