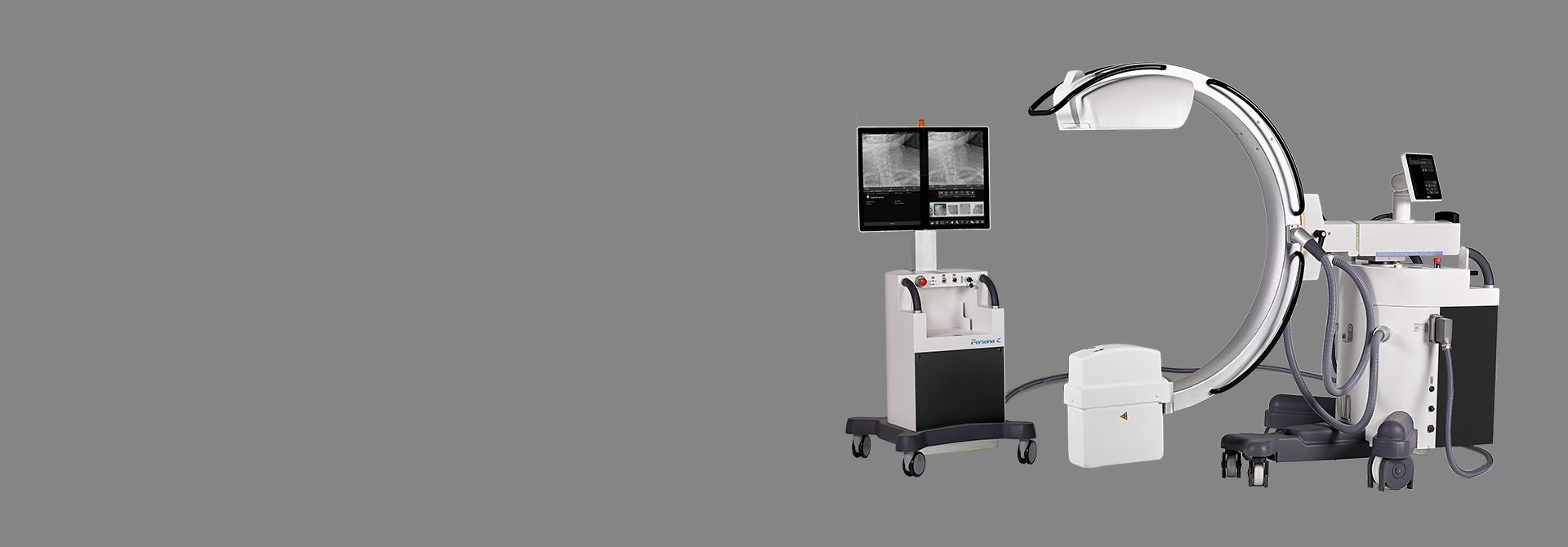

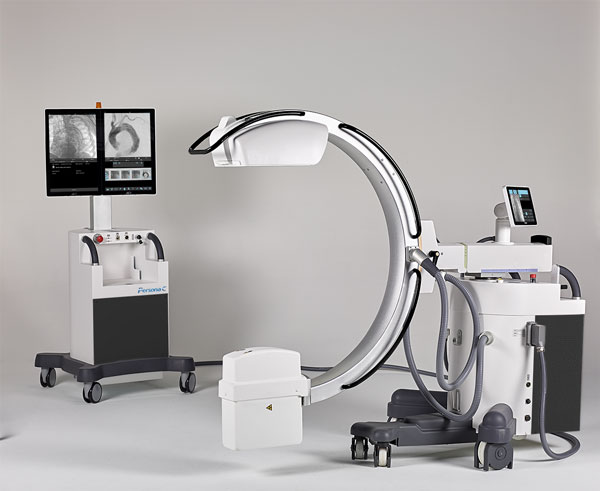

The Persona C Mobile Fluoroscopy System is an advanced C-arm solution engineered for fast, precise positioning and advanced image quality. Available with 21x21cm or 30x30cm amorphous Silicon (aSi) flat panel detector options for ultra-low dose fluoroscopy and vascular imaging. Featuring a removable grid and dedicated ‘radiography mode’ for high quality still imaging, Persona C is designed for easy, precise navigation and imaging across a broad range of diagnostic imaging and minimally invasive surgical procedures.
Absolute Operability
Image manipulation from any side, thanks to a multi-touch console and live imaging. Operator always has direct control over the surgical procedure.
Compact Design
One of the largest openings (81cm) and nearly 200 lbs. lighter than systems in its class. This large diameter, lightweight mobile C-arm enables easy access to the operating procedure. Fast, accurate positioning on patient and effortless gliding. Easy to move from one room to another.
Agile flexibility
Maneuverability is light, easy with unhindered access to the operating area. Perfectly balanced C-arm orbital and angular rotation responds intuitively to operator touch and feel. Fast re-positioning with brake/ axis color coding. Easy lift front wheels designed to overcome obstacles.
Display Unit
Dual 21.5” touch screen monitors fully adjustable in height and angle of view. Ultra sharp details and max zoom with 1920×1920 pixels. Large images and thumbnail in portrait mode. Touchscreen technology for easy image and document call-up and management. I/O ports for easy IT network integration.
Flat Panel Detector
21x21cm with 1.8 million pixels or 30x30cm with 3.8 million pixels for high-resolution, low dose images with aSi and CsI technology. Removable 8:1 grid for low dose applications.
Modulated Power
X-ray emission in pulsed mode with modulated power to suit each type of procedure. Excellent dose/image quality ratio. Dual-Phase Angiography, Road-mapping, Digital Subtraction Angiography (DSA) and Radiography (snapshot) modes.
Features:
-3-mode Active Cooling (option)
Reduces tube heat as much as 50% to prevent overheating [...]
-Operator Console
Always within reach and directly linked to the surgical procedure. [...]
-Orbital Rotation
Vast orbital rotation range (from +65° to -95°) makes [...]
-Angular Rotation
Precise movements and wide angles of more than +/- 210° [...]
-Up/Down Movement
Operator comfort is key: the C-arm has a large range [...]
-C-Arm mounted Operator Console
-Brake-Axis Color Coding
-Removable Grid
-Wireless footswitch control for less cables on the floor (option)
-Instant login via the NFC device
-Removable grid for low dose pediatric surgery and gridless procedures
-X-ray emission controlled by either a foot switch or a multi-function hand switch
-Easy lift front wheels for overcoming obstacles
-Top quality display, certified for medical use and in conformity with the relevant standards for diagnostic imaging
-Zero dose centering with laser localizers on X-ray tubes and on the flat panel detector side.
Accessories
-Wireless Footswitch for hands free and cable free control
-Smartcard registration for hands-free system login
