General Radiography:
- Setting a new standard in diagnostic imaging with a wide 43×57 cm imaging area
- Delivers superior image quality at minimal radiation dose with QX Platform technology
- Enables single-shot imaging of both shoulders, femur, and tibia
- Provides high-quality diagnostic images with excellent DQE and MTF performance
Setting a New Standard in General Radiography:

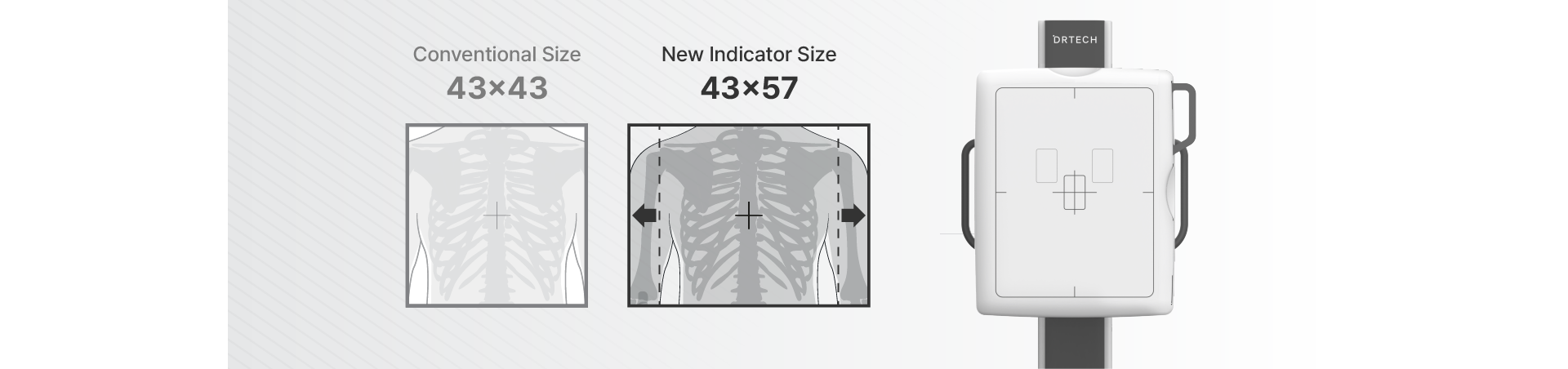

- EXPEED 4357 offers an expanded 43×57 cm imaging area—larger than conventional 43×43 cm detectors.
- enabling quick and easy single-shot imaging of regions such as the whole thoracolumbar spine, femur, and both shoulders.
- This not only enhances workflow efficiency but also effectively reduces radiation exposure for both patients and users.

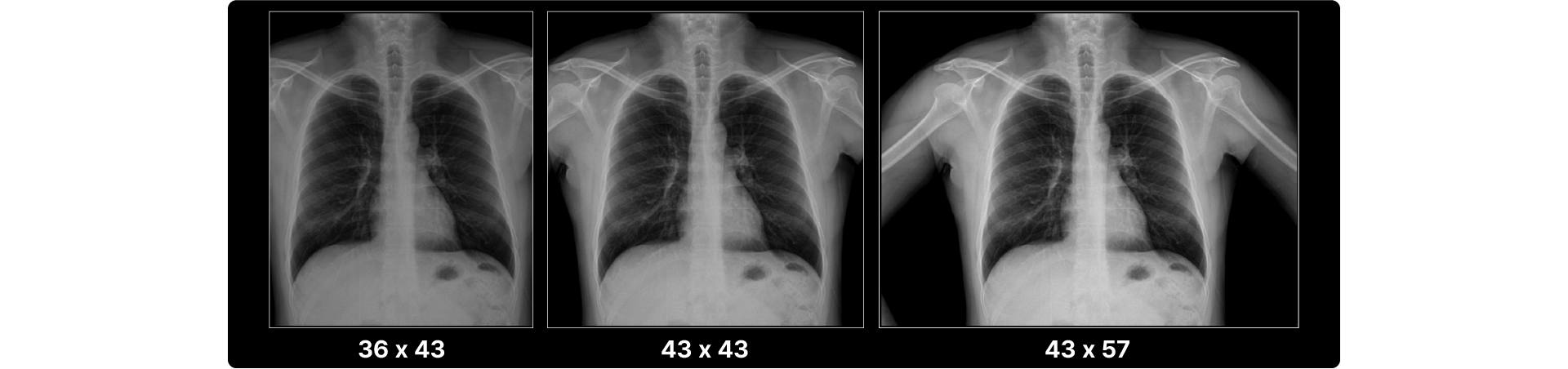

- Faster and more accurate diagnosis with a wider field of view
- Diagnose more, faster, and more accurately with EXPEED 4357

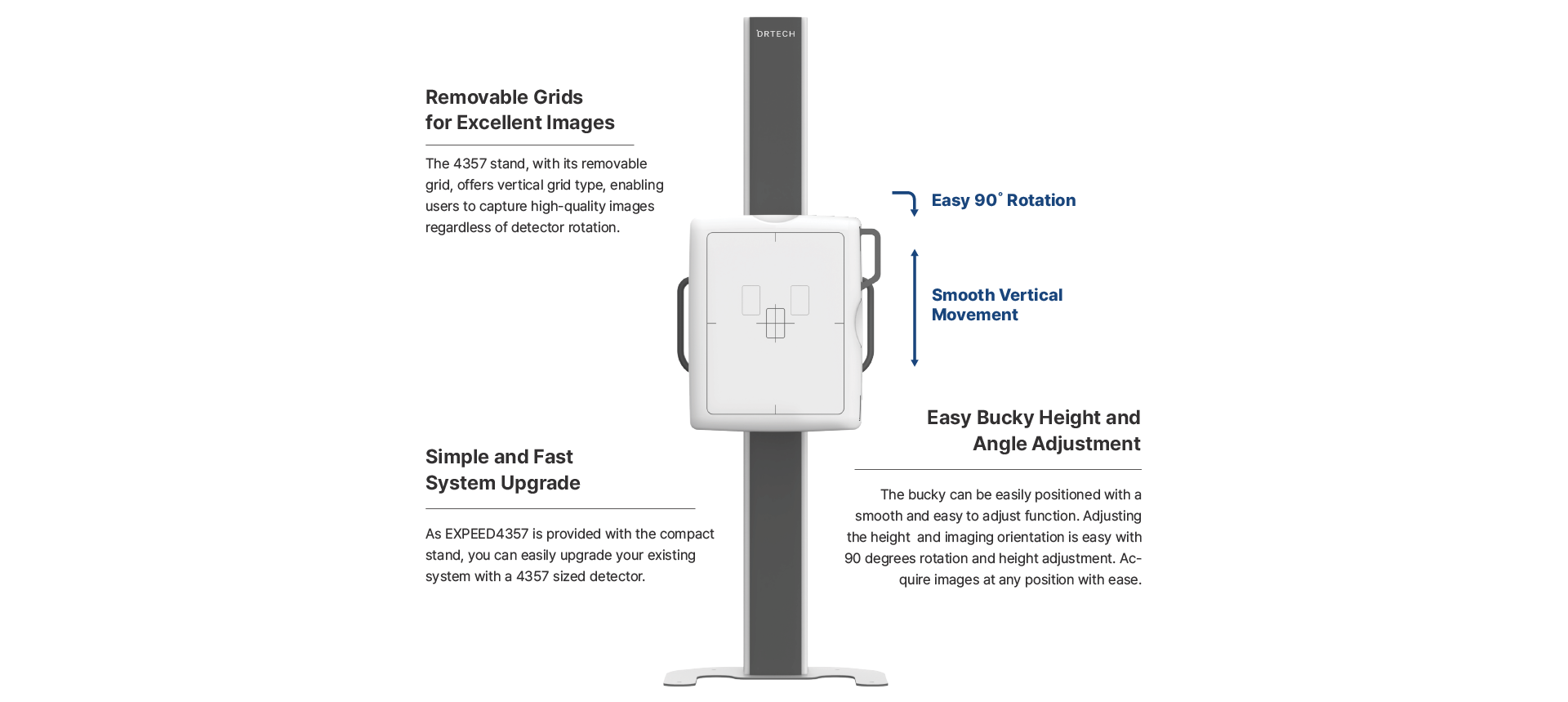

- A compact Bucky stand designed for easy upgrades.
EXPEED by QX-Platform:
- Built on DRTECH’s proprietary QX Platform, it delivers exceptional image quality even at ultra-low doses, with enhanced performance like never before
Next-Generation High-Performance IGZO TFT:
- DRTECH’s next-generation IGZO TFT, developed with proprietary expertise and in-house technology, features electron mobility that is 10 times faster and leakage current that is significantly lower than conventional a-Si. These characteristics reduce noise by a factor of 10, enabling high-resolution diagnostic imaging with minimal noise even at low radiation doses.
FOCUS Scintillator Technology:
- FOCUS (Fluorescent Optical CsI Upgraded Structure) technology is a method of depositing a uniform and consistent CsI layer onto the TFT. This advanced structure significantly reduces noise caused by light scattering compared to conventional CsI, delivering clear, high-contrast images even at low radiation doses.
TRUVIEW®ART:
- TRUVIEW ART, DRTECH’s patented image processing technology, reduces light scattering that occurs in indirect X-ray conversion, resulting in sharper and clearer images. With over 30% improvement in image sharpness compared to conventional methods, it offers outstanding diagnostic performance in detecting subtle lesions in the lungs, chest, heart, and other areas.
DEPAI™:

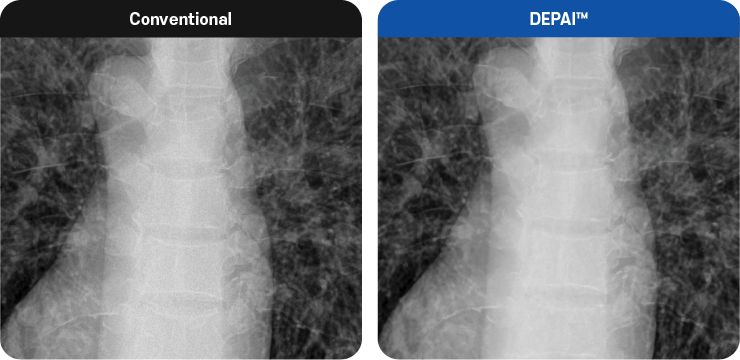

- DEPAI is a cutting-edge image processing technology based on AI deep learning that maintains image sharpness while removing noise even at low radiation doses. By applying AI-driven processing and noise reduction algorithms to bones, muscle tissue, and soft tissue individually, it delivers more than 2.5 times greater detectability.
Specifications:

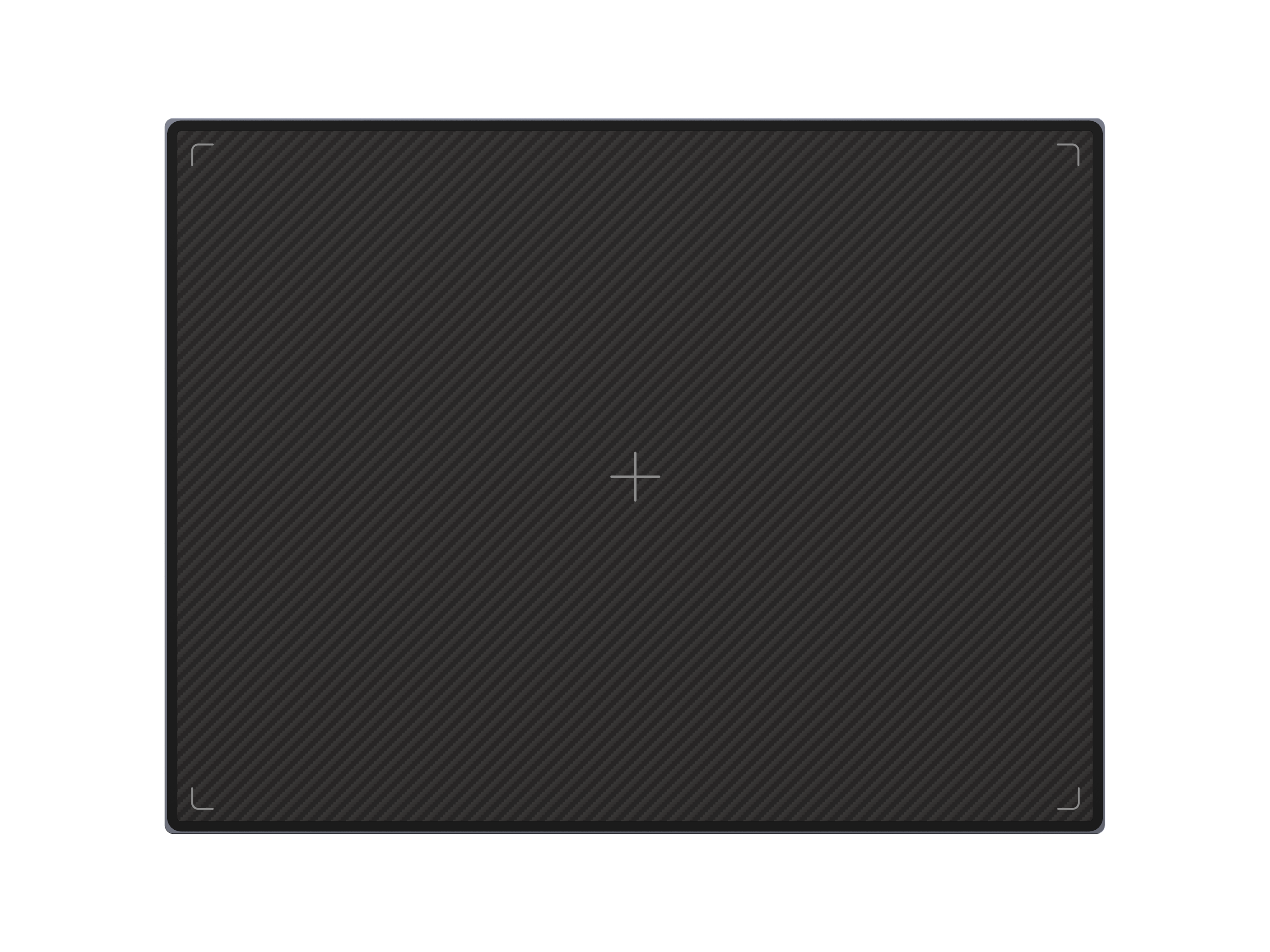

- Model: EXPD 4357 (Wired)
- Scintillator: FOCUS CsI:TI
- Panel Technology: IGZO TFT designed by DRTECH
- Pixel size: 140㎛
- Pixel matrix: 4,096 X 3,072
- Dimensions: 604(H) x 460(V) x 15.5(D) mm
- Weight: 5.6kg
