CA-660 Complete profiles, robust and automated
Robust analyser that will last for years to come
Runs main clinically important tests with clotting, chromogenic and immunological analyses
Specialty testing for full patient profile, up to 60 samples/hour
Colour LCD touch screen and integrated barcode reader
Dedicated interface to Sysmex’s online services

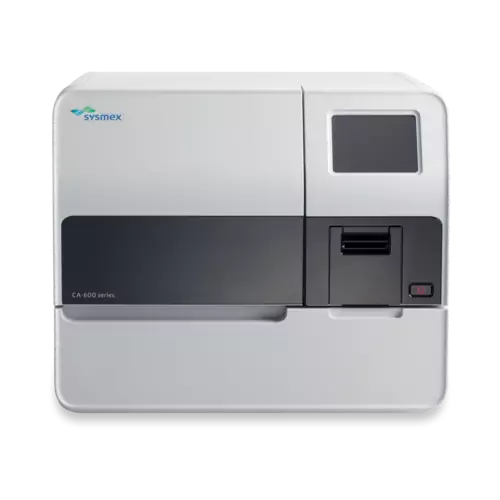

The CA-660* is a compact, fully automated coagulation analyser. It combines proven and successful characteristics – such as the optical detection technology and the reagent system of its predecessors – with new features. In addition to routine testing, it also offers specialty coagulation testing such as D-dimer and von Willebrand Factor activity. It therefore provides a complete patient profile.
It serves as a great primary analyser for low-volume haemostasis laboratories. Or as a powerful backup instrument in larger labs. The CA-660 has been designed in line with our advanced Silent Design concept, is of solid construction, hard-wearing and robust. And with its reliable performance, it will support you day in, day out, for years to come.
* In certain countries the CA-650 model is available instead of CA-660. Apart from different detector wavelengths adapted to the reagents used only in those countries, both models are identical.
*Technical Specifications :
-Detection principles : clotting: scattered light detection method / chromogenics: colorimetric method / immunoassay: latex-enhanced turbidimetric method
-No. of detector channels : clotting: 4 channels / chromogenics: 1 channel / immunoassay: 1 channel
-Parameters : clotting PT, APTT, Fbg, TT, Coagulation Factor Assays II, V, VII, VIII, IX, X, XI, XII, Lupus Anticoagulant (screening and confi rmation), Protein C, Batroxobin chromogenics AT III, Plasminogen, 2-antiplasmin, Protein C, Heparin immunoassay, D-dimer, vWF: Ag
-Throughpu : max. 60 tests per hour
-Test protocols : up to 14 programmable
-STAT : 1 dedicated position
-Sample volumes : min. 50 μL (PT, APTT, TT) / min. 10 μL (Fbg, AT-III) / min. 5 µL (factor assays) /min. 8 µL (Innovance D-dimer)
-Auto-dilution function : for accurate measurement of abnormal fibrinogen or D-dimer levels
-Reagent capacity : 13 positions (4 cooled and 3 dedicated to diluents, bu_ ers or cleaning reagents)
-Quality control : xbar / L-J control: 6 files at 180 points, 14 parameters
-Data storage : up to 600 samples / max. 3,000 tests
-Interfaces : colour LCD touch screen (user interface) / built-in thermal printer, prints data and graphics / built-in barcode reader for samples and STAT / 2D hand-held barcode reader for reagents (ISI, lot#, expiry date), calibrators (assigned value, lot#, expiry date), controls (target/limit, lot#, expiry date), samples/STAT (for sample search) (optional) / SNCS capability (dedicated LAN port) / LIS (serial)
-Dimensions / weights main unit : w x h x d [mm] / [kg] // 566 x 490 x 490 / approx. 42
