Reliable X-Y coupling – one-button design and no complicated settings, the X-Y coupling enables guided movement in one plane.

Ergonomic foot panel – without distraction and interruption, you can conveniently adjust the light intensity, level of focus, X-Y positioning, and recover focus position.

Optional 0°-180° inclinable binoculars – featur the widest range of any binocular for user comfort.

Rotatable handgrip – can be adjusted to the user’s preferred position and enable the user to easily place the OMS in the desired position.

Assistant’s microscope – stereo co-observation device (option) – can be adjusted in three axes for co-observation, fitted with either a straight or inclined tube and easily mounted on the microscope with the use of a beam splitter.

1/3″ CCD adapter;

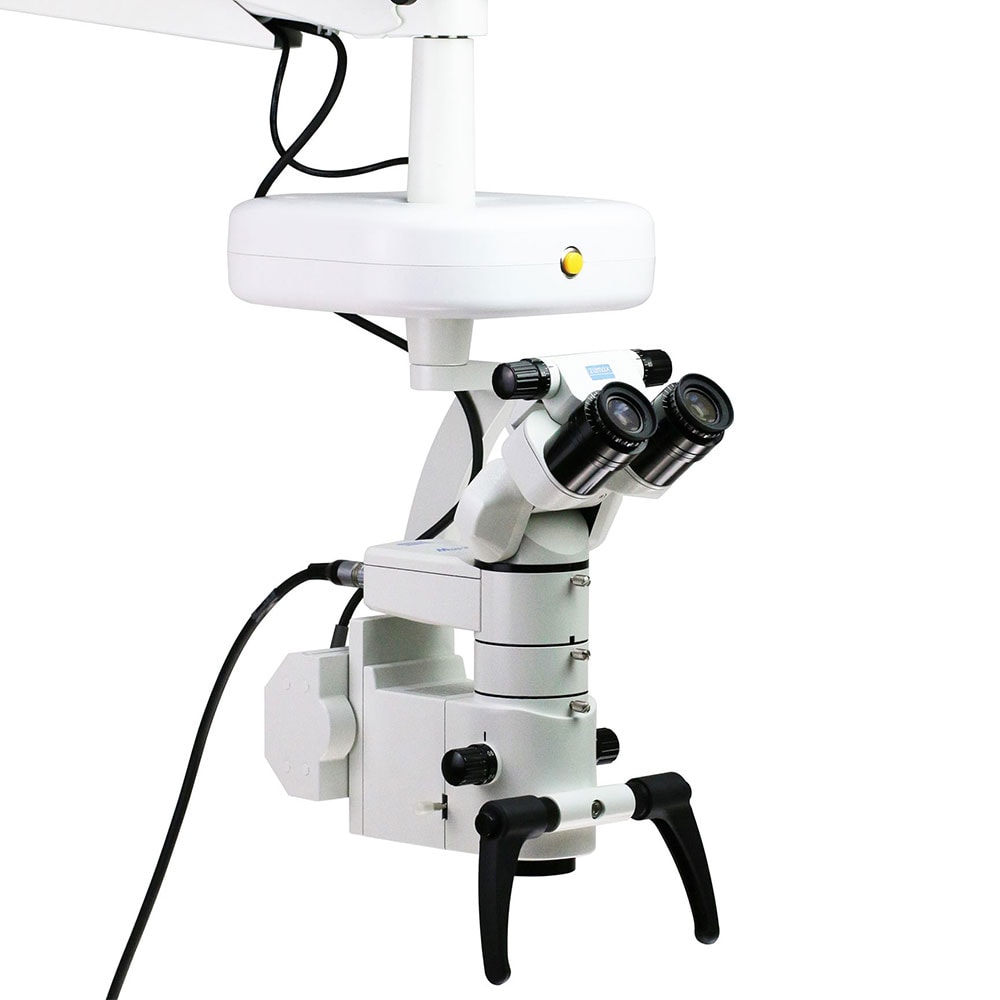

Ophthalmic Microscopes are the latest edition to the Zumax portfolio offering one-button operation of the X – Y coupling with a 40mm x 40mm range. There is a flexible 12 function footswitch for convenient navigation and filters include red-free and retinal protection.

This innovative microscope promotes superb ergonomics through innovative design, created especially for ophthalmic and physiological optics.

Easily position the specialist head for excellent visualisation of the eye during ophthalmic procedures.

Includes LED illumination microscope.

Reliable X-Y coupling – one-button design and no complicated settings, the X-Y coupling enables guided movement in one plane.

Ergonomic foot panel – without distraction and interruption, you can conveniently adjust the light intensity, level of focus, X-Y positioning, and recover focus position.

Optional 0°-180° inclinable binoculars – featur the widest range of any binocular for user comfort.

Rotatable handgrip – can be adjusted to the user’s preferred position and enable the user to easily place the OMS in the desired position.

Assistant’s microscope – stereo co-observation device (option) – can be adjusted in three axes for co-observation, fitted with either a straight or inclined tube and easily mounted on the microscope with the use of a beam splitter.

5-steps manual magnification drum

Five click stop positions – y=0.4x,0.6x,1.0x,1.6x,2.5x

45° inclined binocular tube, f=170mm

0°-180° inclinable binocular tube, f=170mm (Option)

12.5x,(10x, for option ) widefield eyepieces and have integrated eyecups with stepless adjustment

Magnification Changer 0.4x 0.6x 1x 1.6x 2.5x

Magnification 4.3x 6.8x 10.6x 16.9x 26.5x

With selected components, the above magnification range can be shifted up or down.

Motorized, focus range 40mm

12-Function foot switch
