XN-9100 Automated Haematology Analysers
Tailoring haematology to your needs
Seamless scalability:highly flexible workflow and configuration options
Multi-location networking options
Uninhibited workflow from routine to specialised testing
Fully integrated slide maker & stainer and (optional) digital imaging module
Optional pre-sorting, sorting and archiving module for discrete rack management with TS-10 and integration* of ESR and HbA1C
Concentrated power for your growing demands
Sample and validation workflows were never as easy to implement as with the XN-Series’ automation solutions. Modularity and scalability are not just buzzwords, but a reality our customers experience every day. Based on an in-depth analysis of your individual situation, we develop a tailored solution around your prime needs. By initially selecting individual analytical modules, clinical applications and sample routing optimisation, you get the most efficient sample processing system on the smallest footprint. Intelligent sample routing and real-time reflex decisions guarantee the best possible TAT for all samples.
The result: when the sample is presented to you in the validation screen, you can be sure that the information needed to judge the results was already generated by the system, even in several cascading steps.

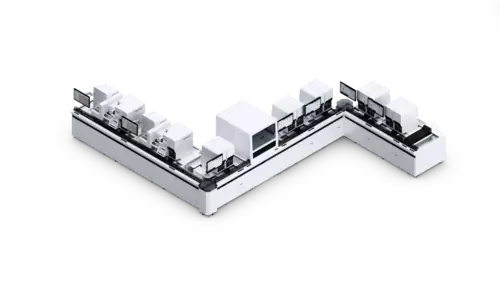

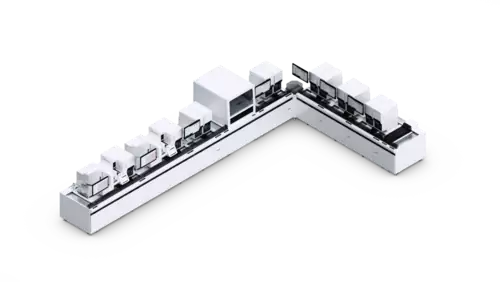

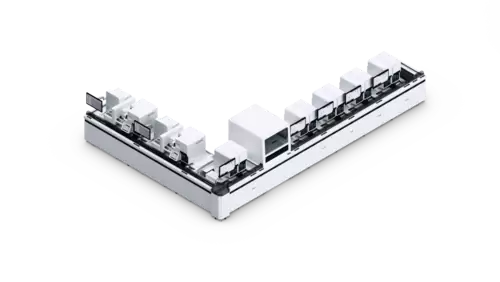

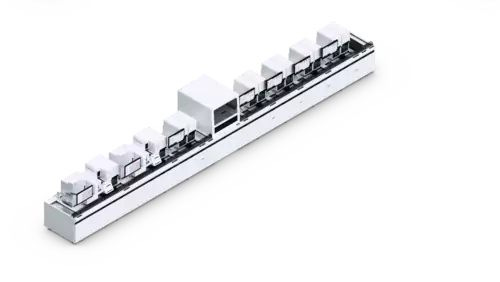

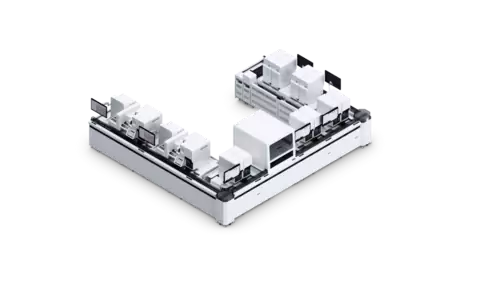

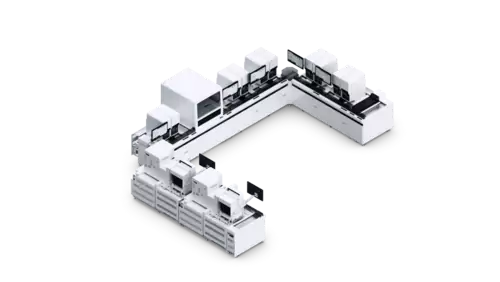

Its fundamental components include at least two XN analysis modules, plus at least one slide maker /stainer module, the SP-50. As customer situations and needs vary significantly, we offer the XN-9100 in different core configurations, all of which are modular and scalable to best suit individual needs.
*Technical Specifications :
-Measurement principles : WBC DIFF/RET/PLT-F/WPC: Fluorescence Flow Cytometry //RBC/PLT: Hydrodynamically focussed impedance //HGB: Cyanide-free SLS haemoglobin
-Throughput From 2 modules of XN-10/20 in combination with SP-50 (H mode): from 200 samples/h in whole blood (WB) mode, / up to 40 samples/h in body fluid (BF) mode per module, / up to 30 slides/h in standard mode per module, / up to 75 slides/h with the optional high-throughput licence per module
-Aspiration volume XN module: SP-50 module: 88 μL in whole blood (WB) mode and body fluid (BF) mode / 70 μL for smear preparation in auto mode, / 38 μL for smear preparation in manual mode
-Analysis parameters : Analysis parameters Whole Blood With RET (optional) With PLT-F (optional) With WPC (optional) XN Stem Cells licence: Body Fluids with XN-BF
(optional) :
WBC, NRBC%, NRBC#, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MicroR%, MacroR%, PDW, MPV,
P-LCR, PCT, NEUT%, NEUT#, LYMPH%, LYMPH#, MONO%, MONO#, EO%, EO#, BASO%, BASO#, IG%, IG#
RET%, RET#, IRF, LFR, MFR, HFR, RET-He, RBC-He, Delta-He, HYPO-He%, HYPER-He%, PLT-O
PLT-F, IPF, IPF#
Extended Inflammation Parameters licence:NEUT-GI, NEUT-RI, RE-LYMP%, RE-LYMP#, AS-LYMP%, AS-LYMP#
HPC%, HPC#
WBC-BF, RBC-BF, MN%, MN#, PMN%, PMN#, TC-BF#
-Sampler unit capacity : 25 racks (250 samples) – Start Yard (ST-40) capacity
-Integrated optional module : DI-60 for digital image analysis / Tube sorter TS-10 / Tosoh HLC-723 G11* – automated glycohaemoglobin analyser / Interrliner* – automated ESR reader
-Staining protocols (SP-50) : May Grünwald – Giemsa, Wright – Giemsa, Wright
-Data storage capacities (XN module) : Results: 100,000 samples / Patient information: 10,000 records / QC files: 99 files (300 plots per file) / Reagent replacement history: 5,000 records / X-bar control (L-J control): 300 plots x 94 files / X-barM control: 300 plots x 5 files
