Powerful & Stable output with unique features for user conveniences. ECORAY’s high frequency inverter technology is heading to more valuable, durable and powerful to produce the high quality of images with every imaging solution.

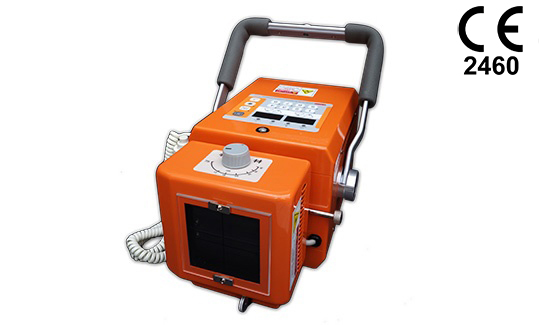

1040HF
Best Selection for Medical use.
· Power into a compact body (2.4kWk, 100kV/40mA output))
· Robust & light weight with higher mA range up to 40mA
· Wide range of application : from equine lower limb to small animal surgery
· Reliable performance
· Certified MDD CE for medical use
Specification:
-Model : 1040HF
-Generator :High Frequency Inverter
-HF Generator Max. Output Power : 2.4kW (80kV@30mA)
-HF Generator Max. kV / mA : 100kV / 40mA
-X-ray Tube Focal Spot: 1.2mm x 1.2mm
Input Power:
100-120VAC, 60Hz
220-240VAC, 50Hz
-Collimator X-ray Field Size :Max. 35cm x 35cm@66cm SID
-Collimator Lamp : 12V / 50W, Halogen Lamp
-Collimator Dual Laser : 66cm SID, Class II
-Display :kV, mAs, X-Ray, Wait, and Error LED display
-Operation Switch :
1. kV & mAs Up/Down
2. Built in dual laser & Collimator lamp ON/OFF
3. Reversible Display
4. APR memory storage
-APR :8 Memory Standard and extendable 16 Memory
-Weight : 12.5kgs
-Dimension (mm) : 344 x 191 x 188
-Advantage : Wide use
