The product line THERMOCARE is the result from decades of experience in warming therapy. Its development is focused on the patients' needs as well as the users' requirements and is a cost-conscious alternative when babies are requiring surveillance in the intermediate care unit. THERMOCARE warming beds create an ideal and thermally stable environment for the small patients, supporting their development.
A modular system, suitable for all requirements:

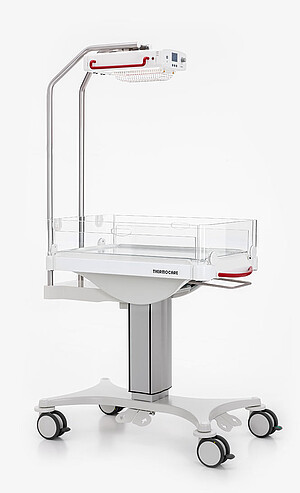

THERMOCARE C
Warming bed with radiant warmer, static height or
height-adjustable
Product details:
Electrical parameters
- THERMOCARE C static height, with radiant warmer
-Soft-lift pillar : –
-Radiant warmer CERAMOTHERM : 690 W
-Take-off sockets for accessories : 3
-Max. power input :2300 W
-Voltage :230 V / 50-60 Hz
-THERMOCARE C height-adjustable, with radiant warmer
-Soft-lift pillar :120 W
-Radiant warmer CERAMOTHERM :690 W
-Take-off sockets for accessories :3
-Max. power input :2300 W
-Voltage :230 V / 50-60 Hz
Operating parameters
- THERMOCARE C static height, with radiant warmer
-Head-up and head-down position each adjustable to : 12°
-Pad : PU foam
-Illumination :LED, 2 x 850 lm, dimmable
-Colour temperature of the light : 4000 K
-Heating element of radiant warmer / wavelength :Ceramic / 1.5 – 6.8 μm
-Selection of radiation intensity : 2 – 20 mW/cm²
-Function "automatic intensity reduction" :Yes
-Display of selected and actual value and residual heat :Yes
-Weight of device : 73 kg
-Classification according to directive 93/42/EEC :II a
-THERMOCARE C height-adjustable, with radiant warmer
-Head-up and head-down position each adjustable to :12°
-Pad :PU foam
-Illumination : LED, 2 x 850 lm, dimmable
-Colour temperature of the light :4000 K
-Heating element of radiant warmer / wavelength : Ceramic / 1.5 – 6.8 μm
-Selection of radiation intensity : 2 – 20 mW/cm²
-Function "automatic intensity reduction" :Yes
-Display of selected and actual value and residual heat : Yes
-Weight of device : 79 kg
-Classification according to directive 93/42/EEC : II a
Product details:

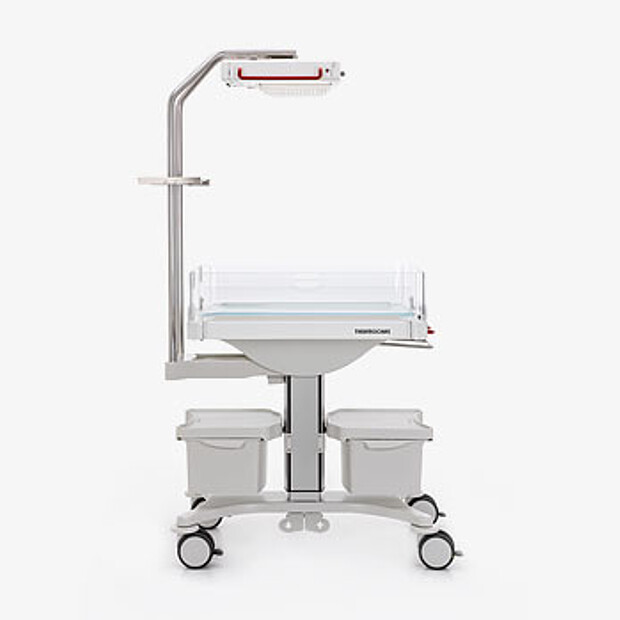

THERMOCARE KCE
Warming bed with under-pad heating and radiant warmer, height-adjustable
Electrical parameters
HERMOCARE KCE height-adjustable, under-pad heating, radiant warmer
-Under-pad heating : 180 W
-Soft-lift pillar : 120 W
-Radiant warmer CERAMOTHERM : 690 W
-Take-off sockets for accessories : 3
-Max. power input : 2300 W
-Voltage : 230 V / 50-60 Hz
Operating parameters
THERMOCARE KCE height-adjustable, under-pad heating, radiant warmer
-Head-up and head-down position each adjustable to : 12°
-Pad : PU gel
-Selection range of under-pad heating
Standard: 35 - 37 °C, Extended: 30 - 38.5 °C:Yes
-Illumination : LED, 2 x 850 lm, dimmable
-Colour temperature of the light : 4000 K
-Heating element of radiant warmer / wavelength : Ceramic / 1.5 – 6.8 μm
-Selection of radiation intensity : 2 – 20 mW/cm²
-Function "automatic intensity reduction" : Yes
-Display of selected and actual value and residual heat : Yes
-Weight of device : 80 kg
-Classification according to directive 93/42/EEC : II b
